VAN GIẢM ÁP CHO HƠI NÓNG YNV, MODEL PIR-1S

Pressure Reducing Valve For Steam YNV PIR-1S

Ứng dụng: Cho hơi nóng

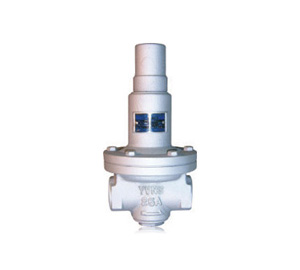

PIR-1S
pir-1s

PIR-1S

pir-1s_drawing

Specifications
Inlet Pressure (kgf/cm2g) 10
Outlet Pressure (kgf/cm2g) 0.35~7
Max Reducing Ratio 10 : 1
Working Temperature(˚C) 220
Working Fluid Steam
Connection PT Screwed
Materials Body : Ductile Iron
Trim : Stainless Steel
Dimensions
SIZE d L H1 H
PART
15A PT 1/2″ 120 47 175
20A PT 3/4″ 120 47 175
25A PT 1″ 120 51 180
32A PT 1 1/4″ 150 70 210
40A PT 1 1/2″ 150 70 210
