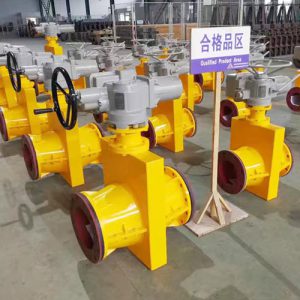

ELECTRIC PINCH VALVE

ELECTRIC PINCH VALVE

ELECTRIC PINCH VALVE

Information Product:

Pinch Valves (pressure valves) are one of the industrial valves used in pneumatic transport systems to stop the flow of solid, abrasive or viscous materials. The needle valve is a flexible tube. Needle when retracted will cause the pipe to be completely sealed.

Description

  • Body: Aluminum alloy Cast Iron, Stainless Steel
  • Pressure: PN6 PN10
  • Size: 1/2″ -12″ (15mm – 300mm)
  • Flange accommodation:
  • EN 1092 PN 6/PN10/PN16
  • ASME Class 150
  • AS 4087 PN 10/ PN 16
  • JIS 5K/10K
  • Body style: flange

The sealing ring :

Wear-resistant natural rubber natural rubber food industry of high temperature resistant natural rubber ethylene-propylene rubber

Ding Qing Nitrile three EPDM, /VITON/FPM Silicone silicone fluorine rubber chloroprene rubber /Neoprene chlorosulfonated polyethylene rubber Hypalon/CSM butyl acrylate /Butyl and other materials such as other material needs please tips.

Applications: cement, silo, sand, mineral materials, limestone, clay, marl, sand, slurry

Features:

Pinch valve is mainly the channel smooth, wear resistance, corrosion resistance and fatigue resistance, no pressure loss, no blockage, no leakage, water hammer shock, has good physical and chemical properties. Lining sleeve for ease of replacement, low maintenance cost.

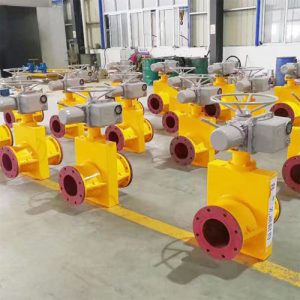

AUTOMATIC VALVE

                                                                     AUTOMATIC VALVE

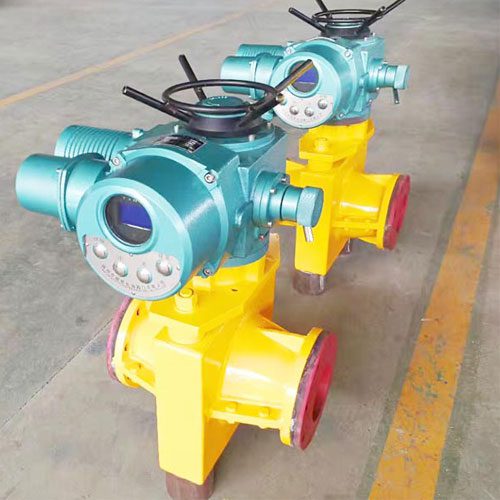

Electric Actuator

Control: ON-OFF type、Regulation type
Control signal: 4-20 mADC、0-5 VDC、0-10 VDC
Power: 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10%
Water-proof actuator:IP67
Option specification:
Explosion-proof actuator: Exd II CT5
Water-proof actuator:IP67

  • CE certification of most units
  • Wiring directly to the terminal strip without interference from other components
  • Simple and unique manual override handwheel system
  • Lowest profile and lightest weight actuator on the market
  • Simple finger or screwdriver adjustment of travel limit cams without interference from other components
  • Highly visible valve status display on most units
