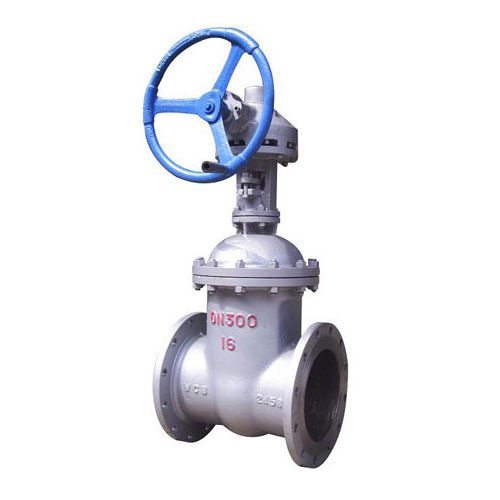

Information: Z441H Bevel gear gate valve

Model: Z441H
Size: DN40-DN800
Medium: water,steam,oil,etc











Bevel gear gate valve Technical parameters

型号 公称压力PN(MPa) 试验压力ps(MPa) 适用介质 工作温度(℃)
强度 密封(液) 低压密封(气)
Z441H-25 2.5 3.8 2.8 0.6 水、蒸汽、油 ≤400
Z441H-40 4.0 6.0 4.4 0.6 ≤450
Z441Y-40I 4.0 6.0 4.4 0.6 ≤550
Z441Y-40P 4.0 6.0 4.4 0.6 酸、碱类 ≤200
Z441H-64 6.4 9.6 7.0 0.6 水、蒸汽、油 ≤450
Z441Y-64I

GZ441Y-64I

6.4 9.6 7.0 0.6 ≤550
KZ441Y-64 6.4 9.6 7.0 0.6 酸性天然气 ≤130
Z441H-100

Z441Y-100

10.0 15.0 11.0 0.6 水、蒸汽、油 ≤450
Z441Y-100I 10.0 15.0 11.0 0.6 ≤530

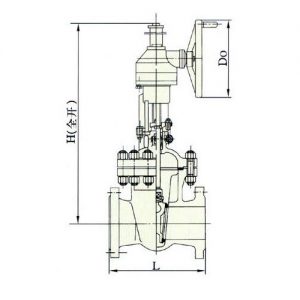

Bevel gear gate valve Main dimension

通径 PN2.5MPa
L D D1 D2 D6 b Z-d H0 H H1 D0 kg
300 500 485 430 390 40 16-30 1236 1145 1474 450 451
400 600 610 550 505 48 16-34 1540 1450 1886 500 998

Main outer Size: Bevel gear gate valve

通径 PN4.0MPa
L D D1 D2 D6 b Z-d H0 H H1 D0 kg
300 750 510 450 408 364 46 16-34 1234 1175 1475 450 610
350 850 570 510 465 422 52 16-34 1377 1322 1678 500 890
400 950 655 585 535 474 58 16-41 12 1492 1900 560 1333
500 1150 755 670 612 576 62 20-48 2135 1975 2510 720 2526
