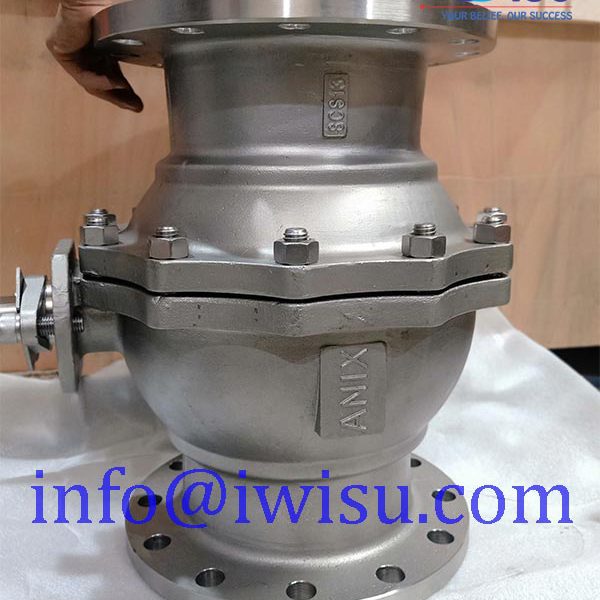

FLOATING BALL VALVE CF8M CLASS 150

VAN BI 2 THÂN CF8M CLASS 150

FLOATING BALL VALVE CF8M CLASS 150

FLOATING BALL VALVE CF8M CLASS 150

















Tên gọi khác:  FIRE SAFE, API 6D, FBV CF8M FLANGED END CLASS 150 FULL BORE API 6D FIRE SAFE, CF8M Flanged 2 Piece Full Port Ball Valve ANSI 150 / ANSI 300 (Fire Safe).

Thông tin sản phẩm:  FBV42R6F-150

Download tài liệu:  ANIX BALL VALVE CATALOGUE: FBV42R6F-150

  • Anix CF8M Flanged 2PC Full Bore Ball Valve ANSI 150 / ANSI 300
  • CF8M Full Port Body
  • SS316 Ball, RPTFE Seat
  • Flange Connection according to ASME B16.5
  • Locking Handle for Valve Locakability
  • Blow-Out-Proof Stem Design
  • Graphite Packing
  • Fire Safe and Anti-statis Design with R-PTFE seat materials
  • Working Pressure of Class 150 for Water, Oil, or Gas Medium Application for FBV426F/150
  • Working Pressure of Class 300 for Water, Oil, or Gas Medium Application for FBV426F/300
  • Design fully complies with ASME B16.34 and API 607
  • Tested in accordance with API 598
  • Size: 1/2″ to 1 1/4″  (Solid SS316 Ball, RPTFE, Lever), 1 1/2″ to 8″ (Hollow SS316 Ball, RPTFE), 10″ to 12″ (Hollow SS316 Ball, RPTFE,Gear).
