FULL BORE TRUNNION BALL VALVES 3-PIECE CLASS 150
SIDE ENTRY TRUNNION BALL VALVES
FULL BORE TRUNNION BALL VALVES
BASIC CONFIGURATION
ASME INTEGRAL FLANGED AND WELDING ENDS
FULL BORE TRUNNION BALL VALVES 3-PIECE CLASS 150

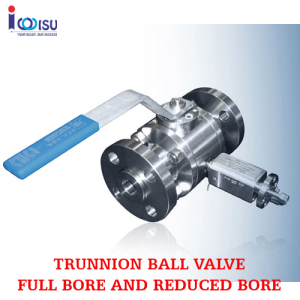

BEF TRUNNION BALL VALVE 3- PIECE CLASS 150
DESCRIPTION
The trunnion ball valve is a form of quarter-turn valve which uses a hollow, perforated and fixed/supported ball to control flow through it.
A trunnion mounted valve means that the ball is constrained by bearings and is only allowed to rotate, the majority of the hydraulic load is supported by the System constraints, resulting in low bearing pressure and no shaft fatigue. The line pressure drives the upstream seat against the stationary ball so that the line pressure
forces the upstream seat onto the ball causing it to seal.
The mechanical anchoring of the ball absorbs the thrust from the line pressure, preventing excess friction between the ball and seats, so even at full rated working pressure operating torque remains low. This is particularly advantageous when the ball valve is actuated because it reduces the size of the actuator and hence the overall costs of the valve actuation package.
Cataloge: FULL BORE TRUNNION BALL VALVES CLASS 150 CLASS 300
PRODUCT FEATURES: BEF TRUNNION BALL VALVE 3- PIECE CLASS 150
1. Standard double block sealing performance.
2. Full die forged structure for all pressure containing parts.
3. Flanged valves are provided with flanged integral with closure member.
4. Standard primary gasket design is OR AED type, secondary emergency seal always provided for firesafe purpose.
5. High quality stem gasket for reliable tightness and low emission performance.
6. Use of low seat-ball friction materials and surface finish for reliable sealing and long service life.
7. Best-in-Class CV values.
8. Standard split & bolted design for body-closure connection.
9. Low operation torque design.
10. Static conduction spring is used as standard between the stem and the ball (Antic-Static Device).
11. Anti blow-out proof stem design
Applicable Standards: BEF TRUNNION BALL VALVE 3- PIECE CLASS 150
- DESIGN: API 6D – ASME B16.34 – ISO 17292 – API 608
- INSPECTION & TESTING: API 598
- MARKING: MSS SP-25
- RATING: ASME B16.34
- With possible derating for high temperature based on seat material.
- FUGITIVE EMISSION: ISO 15848
PRODUCT FEATURES: DESIGN TYPE 3AL CLASS 150
3-PIECE GLAND COVER & SHAFT TRUNNION
- Standard O-Rings in Viton with AED properties
Note: ASME B16.10 does not specify any value, selected Face-to-Face acc.to ASME B16.10 related to class 600
- 3-PIECE
- GLAND COVER & SHAFT TRUNNION
- LEVER OPERATOR
- CONNECTION: FLANGED END, BUTT WELDING END
DIMENSION: TRUNNION BALL VALVE 3- PIECE CLASS 150
DIMENSIONS OR SPECIFICATIONS WITHOUT NOTICE CLASS 150
