NEWAY EXPANDING GATE VALVE GT SERIES

VAN CỔNG NEWAY DÒNG GT

NEWAY EXPANDING GATE VALVE GT SERIES

NEWAY EXPANDING GATE VALVE GT SERIES

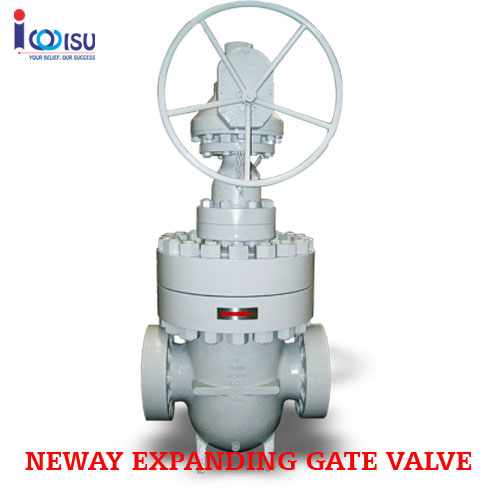

Product overview: EXPANDING GATE VALVE

Neway expanding gate valves are widely applied where high performance is required like in high temperature and high pressure pipelines. Neway’s expanding gate valves are in compliance with API6D and provide a superior bi-directional torque based mechanical seal. During operation the gate assembly travels freely between the seal surfaces which will reduce the wear risk and prolong the valve service life.

  • Size: NPS 2″~24″(DN50~DN600)
  • Pressure Rating: ASME CLASS 300~2500(PN40~PN420)
  • Body material:Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
  • End connection:RF,BW,RTJ
  • Operation:Manual, Pneumatic, Electric, Hydraulic
EXPANDING GATE VALVE
