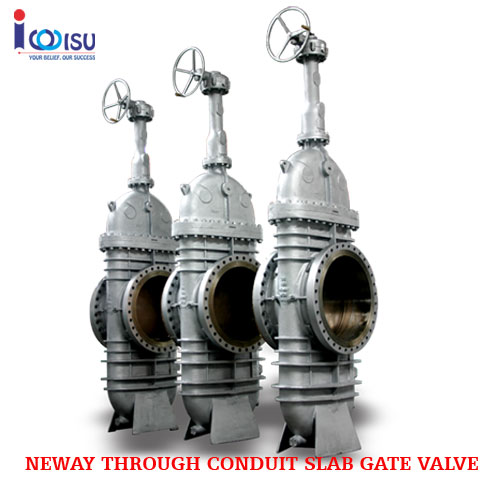

NEWAY GATE VALVE GT SERIES

VAN CỔNG NEWAY DÒNG GT

Product overview: THROUGH CONDUIT SLAB GATE VALVE

Neway slab gate valve is a through conduit valve type. The design is ideal to minimize pressure drops and to prevent accumulation of external materials such as slurries into the valve cavity.

This valve type is widely used for oil & gas transportation and complies to the API6D standard.

Size: NPS 2″~48″(DN50~DN1200）
Pressure Rating: ASME CLASS 150~2500（PN16~PN420）
Body material：Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection：RF, BW, RTJ
Operation：Manual, Pneumatic, Electric, Hydraulic

Tài liệu tham khảo: THROUGH CONDUIT SLAB GATE VALVE
