NEWAY GATE VALVE GP SERIES

VAN CỔNG NEWAY DÒNG GP

NEWAY GATE VALVE GP SERIES

NEWAY GATE VALVE GP SERIES

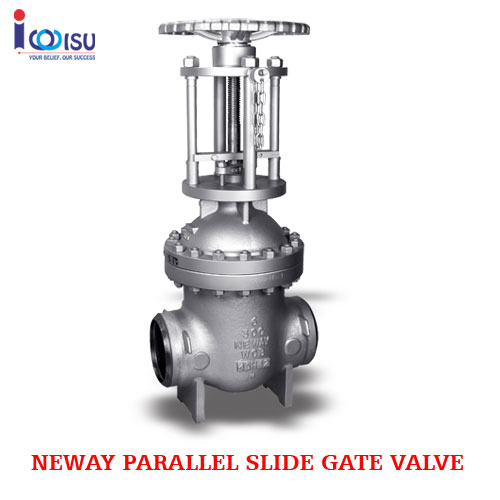

Product overview:  GATE VALVE PARALLEL SLIDE

Neway parallel slide gate valves are designed with positional seal, using the line pressure as a sealing force. The compressed spring between the two closure members provides an initial seal during low pressure conditions. The increasing line pressure will push the closure members with higer forces aginst each other which creates the primary seal. The higher the medium pressure, the better the sealing performance. Therefore this valve type is widely used in high pressure and high temperature services such as steam and feedwater.

  • Size: NPS 1/2″, NPS 36″(DN15~DN900)
  • Pressure: Class 300, Class 2500(PN25~PN420)
  • Body material: Carbon steel, Alloy steel, Duplex stainless steel
  • End connection: RF, BW, RTJ
  • Operation: Manual, Pneumatic, Electric,Hydraulic
