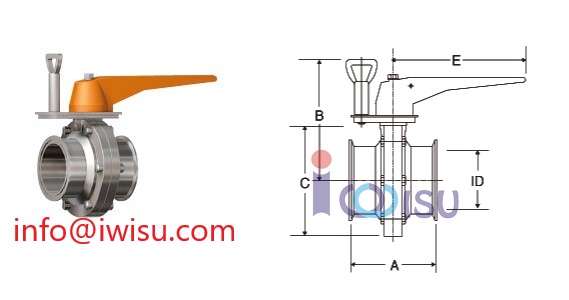

| Nom.size | ID | A | B | C | E |
| Ferrule・Male Male×Hexagon Nut |
|||||
| 1.0S | 23 | 80 | 110 | 77 | 150 |
| 1.5S | 35.7 | 80 | 117 | 91 | 150 |
| 2.0S | 47.8 | 80 | 124 | 104 | 150 |
| 2.5S | 59.5 | 100 | 138 | 126 | 150 |
| 3.0S | 72.3 | 100 | 138 | 126 | 150 |
| 4.0S | 97.6 | 125 | 151 | 150 | 150 |
| Nom.size | Mass kg | ||
| Ferrule | Male | Male×Hexagon Nut | |
| 1.0S | 1.28 | 1.20 | 1.32 |
| 1.5S | 1.38 | 1.54 | 1.62 |
| 2.0S | 1.66 | 1.94 | 2.08 |
| 2.5S | 2.40 | 2.60 | 2.86 |
| 3.0S | 2.30 | 2.58 | 2.94 |
| 4.0S | 3.40 | 3.90 | 4.74 |
OSAKA PNEUMATIC VALVES (SINGLE ACTION) – BPO Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg 8A – 10.5 90 66 0.6 BPO1414-TX/CE-8 1.1 10A – 14.0 90 66 0.6 BPO1414-TX/CE-10 1.1 Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg PO14N- 15A 07B 17.5 102 188 0.7 BPO1414-TX/CE-15 1.7 09B…
OSAKA PNEUMATIC VALVES – BPC Email: info@iwisu.com Phones: 090.860.1662 Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg 8A – 10.5 90 70 0.6 BPC1414-TX/CE-8 1.1 10A – 14.0 90 70 0.6 BPC1414-TX/CE-10 1.1 Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg PC14N- 15A 07B 17.5 102 188 0.6 BPC1414-TX/CE-15…
OSAKA PNEUMATIC VALVES – BPN Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg 8A – 10.5 90 66 0.6 BPN1414-TX/CE-8 1.0 10A – 14.0 90 66 0.6 BPN1414-TX/CE-10 1.0 Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg PN14N- 15A 07B 17.5 102 188 1.0 BPN1414-TX/CE-15 1.5 1.0S 07B 23…
OSAKA PNEUMATIC T TYPE DIAPHRAGM VALVES – NBS-T-PSS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C F G H Mass kg 8A 10.5 55 55 178 4.5 76.3 233 3 10A 14 55 55 176 4.5 76.3 231 3 15A 17.5 55 55 174 4.5 76.3 229 3 1.0S 23 55 55 176 6…
OSAKA PNEUMATIC T TYPE DIAPHRAGM VALVES – NBS-T-PWS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C F G H Mass kg 8A 10.5 55 55 178 4.5 76.3 233 2.9 10A 14 55 55 176 4.5 76.3 231 2.9 15A 17.5 55 55 174 4.5 76.3 229 2.9 1.0S 23 55 55 176 6…
OSAKA PNEUMATIC L TYPE DIAPHRAGM VALVES – NBS-L-PSS Email: 090.860.1662 Phones: info@iwisu.com Nom.size ID A B C F G H Mass kg 8A 10.5 55 55 178 4.5 76.3 233 3 10A 14 55 55 176 4.5 76.3 231 3 15A 17.5 55 55 174 4.5 76.3 229 3 1.0S 23 55 55 176 6…
OSAKA PNEUMATIC L TYPE DIAPHRAGM VALVES – NBS-L-PWS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C F G H Mass kg 8A 10.5 55 55 178 4.5 76.3 233 2.9 10A 14 55 55 176 4.5 76.3 231 2.9 15A 17.5 55 55 174 4.5 76.3 229 2.9 1.0S 23 55 55 176 6…
OSAKA PNEUMATIC FLANGE SEPARATED TANK VALVES – NBS-TBF-PSS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C E F J T Mass kg 15A 17.5 120 49 174 50 4.5 32.7 10 4.2 1.0S 23 120 52 176 50 6 35.4 12 4.6 1.5S 35.7 140 62 201 66 9 41.6 12 7.4 2.0S 47.8…
OSAKA PNEUMATIC FLANGE SEPARATED REVERSE-TYPE TANK VALVES – NBS-TBFX-PSS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C E F J K 1.0S 23 135 41 183 65.9 6 35.4 16.7 1.5S 35.7 155 47.6 211 82.6 9 41.6 26.5 2.0S 47.8 175 56.1 255 97.6 12 46.6 37.2 3.0S 72.3 210 74.3 316 134.7…
OSAKA PNEUMATIC FLANGE INTEGRATED TANK VALVES – NBS-TBW-PSS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C E F J T Mass kg 15A 17.5 120 37 174 50 4.5 32.7 10 4 1.0S 23 120 39 176 50 6 35.4 12 4.2 1.5S 35.7 140 46 201 66 9 41.6 12 6.8 2.0S 47.8…
OSAKA PNEUMATIC F TYPE DIAPHRAGM VALVES – NBS-F-PSS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C F G N H Mass kg 1.5S 35.7 70 70 201 9 101.6 61 332 6.3 2.0S 47.8 82 82 219 12 139.8 76 377 12.7 2.5S 59.5 105 105 234 15 139.8 88 427 14.6 3.0S 72.3…
OSAKA PNEUMATIC F TYPE DIAPHRAGM VALVES – NBS-F-PWS Email: info@iwisu.com Phones: 090.860.1662 Nom.size ID A B C F G N H Mass kg 1.0S 23 55 55 176 6 76.3 48 279 3.9 1.5S 35.7 70 70 201 9 101.6 61 332 6 2.0S 47.8 82 82 219 12 139.8 76 377 11.5 2.5S 59.5…
