OSAKA PNEUMATIC VALVES – BPC
Email: info@iwisu.com
Phones: 090.860.1662

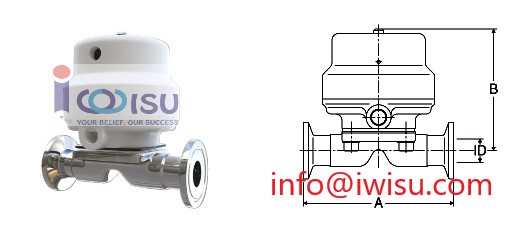

| Nom.size | Actuator Type | ID | A | B | Fluid Pressure(MPa) | Type | Mass kg |
| 8A | – | 10.5 | 90 | 70 | 0.6 | BPC1414-TX/CE-8 | 1.1 |
| 10A | – | 14.0 | 90 | 70 | 0.6 | BPC1414-TX/CE-10 | 1.1 |
| Nom.size | Actuator Type | ID | A | B | Fluid Pressure(MPa) | Type | Mass kg |
| PC14N- | |||||||
| 15A | 07B | 17.5 | 102 | 188 | 0.6 | BPC1414-TX/CE-15 | 1.6 |
| 09B | 210 | 1.0 | 2.1 | ||||
| 1.0S | 07B | 23 | 127 | 198 | 0.1 | BPC1414-TX/CE-25 | 2.2 |
| 09B | 220 | 0.7 | 2.7 | ||||
| 12B | 227 | 1.0 | 3.7 | ||||
| 1.5S | 12B | 35.7 | 159 | 245 | 1.0 | BPC1414-TX/CE-40 | 4.8 |
| 2.0S | 12B | 47.8 | 191 | 257 | 0.3 | BPC1414-TX/CE-50 | 6.5 |
| 16B | 283 | 1.0 | 8.9 |

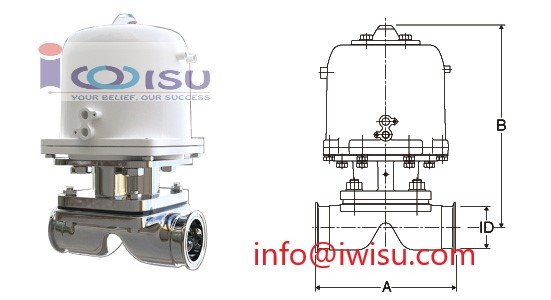

| Nom.size | Actuator Type | ID | A | B | Fluid Pressure(MPa) | Type | Mass kg |
| PC14N- | |||||||
| 2.5S | 16B | 59.5 | 216 | 297 | 0.7 | BPC1414-TX/CE-65 | 10.6 |
| 20B | 348 | 1.0 | 15.5 | ||||
| 3.0S | 20B | 72.3 | 254 | 368 | 0.6 | BPC1414-TX/CE-80 | 19.7 |
| 25B | 406 | 1.0 | 24.4 | ||||
| 4.0S | 20B | 97.6 | 305 | 386 | 0.2 | BPC1414-TX/CE-100 | 26.9 |
| 25B | 425 | 0.7 | 31.6 |
