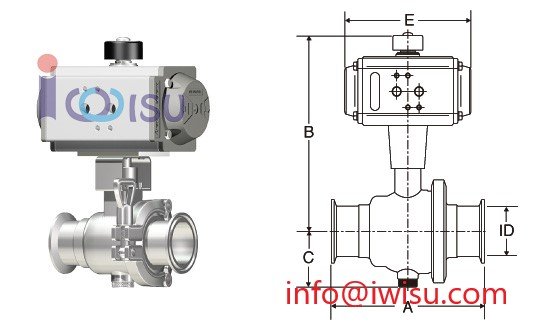

Pneumatic Ball Valves 2-way (Single Action) 2BM-PS

Nom.size ID A B C E P MPa Connecting Hole Mass kg
1.0S 23 110 183 39 136 0.7 G1/8ネジ 2.5
1.5S 35.7 140 190 48 136 0.65 G1/8ネジ 3.2
2.0S 47.8 164 219 56 154 0.54 G1/8ネジ 4.9
2.5S 59.5 210 229 71 154 0.27 G1/8ネジ 7.2
3.0S 72.3 220 270 83 204 0.29 G1/8ネジ 10.7
3.5S 85.1 250 279 93 204 0.16 G1/8ネジ 14.5
4.0S 97.6 310 290 103 204 0.10 G1/8ネジ 18.9
Pneumatic Ball Valves 2-way (Single Action) 2BM-PS
