OSAKA PNEUMATIC BALL VALVES 3-WAY (SINGLE ACTION) BN3-PS

Email:   info@iwisu.com

Phones:  090.860.1662

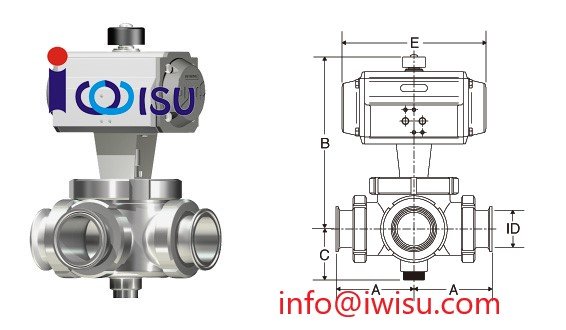

Pneumatic Ball Valves 3-way (Single Action) BN3-PS Osaka


Nom.size ID A B C E P MPa Connecting hole Mass kg Round Nut Spanner required for disassembly
Type SP-R Nom.size
1.0S 23 85 232 53 204 0.7 G1/8 Screw 7.2 58-65 and 80-85
1.5S 35.7 95 236 59 204 0.7 G1/8 Screw 10.0 70-75 and 92-100
2.0S 47.8 110 276 72 269 0.7 G1/4 Screw 18.0 92-100 and 120-130
2.5S 59.5 120 293 93 269 0.7 G1/4 Screw 25.5 105-115 and 140-150
3.0S 72.3 130 309 99 269 0.59 G1/4 Screw 29.3 120-130 and 155-165
3.5S 85.1 150 359 111 345 0.7 G1/4 Screw 42.0 140-150 and 175-195
4.0S 97.6 155 406 116 438 0.7 G1/4 Screw 57.6 140-150 and 200-250
Pneumatic Ball Valves 3-way (Single Action) BN3-PS Osaka
