Pneumatic L type Diaphragm Valves - NBS-L-PSS Osaka

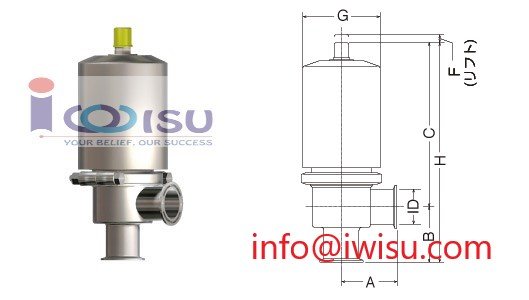

Nom.size ID A B C F G H Mass kg
8A 10.5 55 55 178 4.5 76.3 233 3
10A 14 55 55 176 4.5 76.3 231 3
15A 17.5 55 55 174 4.5 76.3 229 3
1.0S 23 55 55 176 6 76.3 231 3.4
1.5S 35.7 70 70 201 9 101.6 271 5.3
2.0S 47.8 82 82 243 12 114.3 325 9.1
2.5S 59.5 105 105 282 15 139.8 387 13
3.0S 72.3 110 110 298 18 165.2 408 17.2
Pneumatic L type Diaphragm Valves - NBS-L-PSS Osaka
