OSAKA PNEUMATIC L TYPE DIAPHRAGM VALVES – NBS-L-PWS

Email:   info@iwisu.com

Phones:  090.860.1662

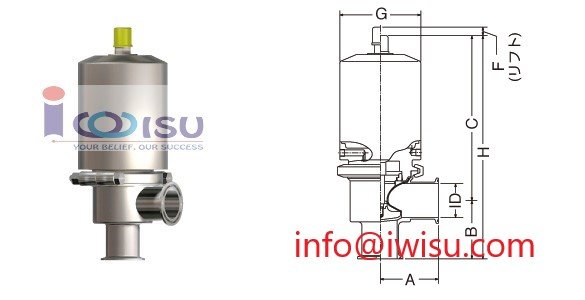

Pneumatic L type Diaphragm Valves - NBS-L-PWS Osaka

Nom.size ID A B C F G H Mass kg
8A 10.5 55 55 178 4.5 76.3 233 2.9
10A 14 55 55 176 4.5 76.3 231 2.9
15A 17.5 55 55 174 4.5 76.3 229 2.9
1.0S 23 55 55 176 6 76.3 231 3.3
1.5S 35.7 70 70 201 9 101.6 271 4.8
2.0S 47.8 82 82 243 12 114.3 325 7.7
2.5S 59.5 105 105 282 15 139.8 387 11.3
3.0S 72.3 110 110 298 18 165.2 408 14.7
Pneumatic L type Diaphragm Valves - NBS-L-PWS Osaka
