OSAKA PNEUMATIC VALVES – BPN

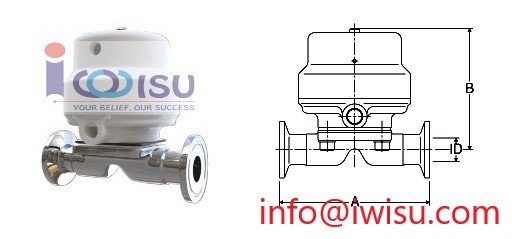

Pneumatic Valves - BPN Osaka V2

Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg
8A – 10.5 90 66 0.6 BPN1414-TX/CE-8 1.0
10A – 14.0 90 66 0.6 BPN1414-TX/CE-10 1.0

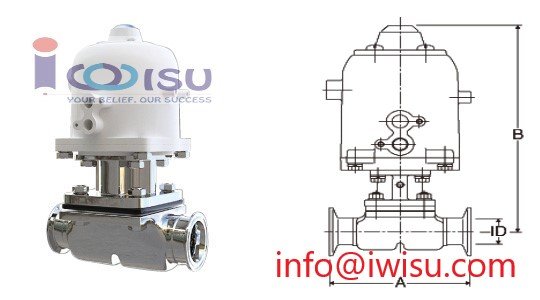

Pneumatic V1 - BPN

Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg
PN14N-
15A 07B 17.5 102 188 1.0 BPN1414-TX/CE-15 1.5
1.0S 07B 23 127 198 0.75 BPN1414-TX/CE-25 2.1
09B 220 1.0 2.5
1.5S 09B 35.7 159 238 0.55 BPN1414-TX/CE-40 3.6
12B 245 1.0 4.4
2.0S 12B 47.8 191 257 0.9 BPN1414-TX/CE-50 6.1
16B 283 1.0 8.4

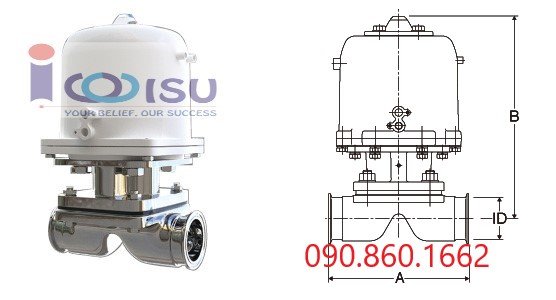

Pneumatic Valves Double Action - BPN Osaka V3

Nom.size Actuator Type ID A B Fluid Pressure(MPa) Type Mass kg
PN14N-
2.5S 16B 59.5 216 297 1.0 BPN1414-TX/CE-65 10.1
3.0S 20B 72.3 254 368 1.0 BPN1414-TX/CE-80 18.2
4.0S 20B 97.6 305 386 0.6 BPN1414-TX/CE-100 25.4
25B 425 1.0 30.1
Pneumatic Osaka Valves - BPN
