VAN GỐC ĐIỆN TỬ ĐIỀU KHIỂN BURKERT 3320 2-2

BURKERT 3320 ELECTROMOTIVE 2/2 WAY ANGLE SEAT VALVE

TYPE 3320 BURKERT ELECTROMOTIVE 2/2 WAY

VAN GỐC ĐIỆN TỬ ĐIỀU KHIỂN BURKERT 3320 2-2

VAN GỐC ĐIỆN TỬ ĐIỀU KHIỂN BURKERT 3320 2-2

Type Description 3320

  • The innovative Bürkert On/Off process valve Type 3320 is the solution when it comes to shut-off tasks under demanding operating conditions.
  • The actuator and shut-off valve are adapted perfectly to each other with closed design and robust surface. This ensures the hygienic requirements of a fast and residue-free cleaning.
  • Harsh environments are no problem for the Type 3320 because of the protection class IP65 / IP67 and its high impact and vibration resistance.
  • The fieldbus suitable for Type 3320 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.
  • Fail-safe position by energy storage
  • Rapid flow shut off
  • Weather and impact resistant design
  • Designed according to hygienic demands
  • Many diagnostic functions

Sản phẩm liên quan cùng loại:

Ident No. 293462: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | G | 3/4″ | 24 V DC | 0,00 bar – 16,00 bar

Ident No. 298601: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | ASME BPE / DIN 11866 Reihe C / BS4825 | 1″ – 25,4×1,65 | 24 V DC | 0,00 bar – 16,00 bar

Ident No. 299468: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | NPT | 1″ | 24 V DC | 0,00 bar – 16,00 bar

Ident No. 299469: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PEEK / Steel | NPT | 1/2″ | 24 V DC | 0,00 bar – 16,00 bar

Ident No. 299471: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | NPT | 1″ | 24 V DC | 0,00 bar – 16,00 bar

Ident No. 299472: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | NPT | 1 1/2″ | 24 V DC | 0,00 bar – 10,00 bar

Ident No. 299543: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | ASME BPE / BS4825-3 (pipe BS4825-1) | 1 1/2″ – 38,1×1,65 Cl: 50,5 | 24 V DC | 0,00 bar – 10,00 bar

Ident No. 299569: 2/2-way angle seat valve el.mot.

Angle seat valve | 2/2 | PTFE / Steel | ASME BPE / BS4825-3 (pipe BS4825-1) | 2″ – 50,8×1,65 Cl: 64,0 | 24 V DC | 0,00 bar – 6,00 bar

Các hãng liên quan sản phẩm: Type 3360Valve xiên nối ren inox 304Valve xiên nối ren inox 316Valve xiên mặt bích inox 316Valve xiên mặt bích inox 304BURKERT Electromotive.
Tab: thegioivalve, thegioimatbich, iwisu

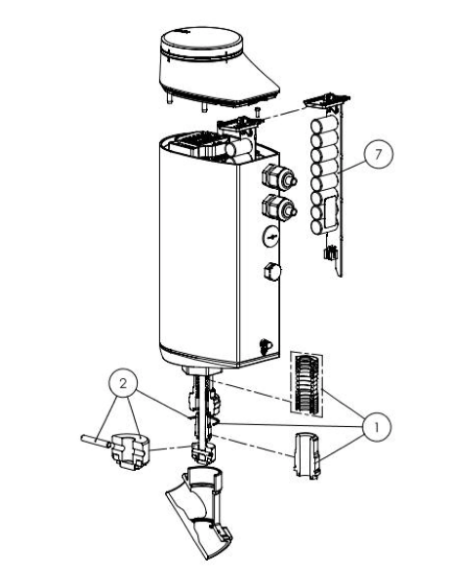

inside Type 3320 - Electromotive 2-2 way angle seat valve - Copy
