VAN KHÍ NÉN OSAKA 3 NGÃ BN3-PW

OSAKA PNEUMATIC BALL VALVES 3-WAY (DOUBLE ACTION) BN3-PW

Osaka Pneumatic Ball Valves 3-way (Double Action) BN3-PW Osaka





Các tên gọi khác:  VAN KHÍ NÉN OSAKA 3 NGÃ BN3-PW, VAN 3 NGÃ OSAKA, VAN KHÍ NÉN 3 NGÃ.

Thông tin sản phẩm: vật liệu 316L thép không rỉ.

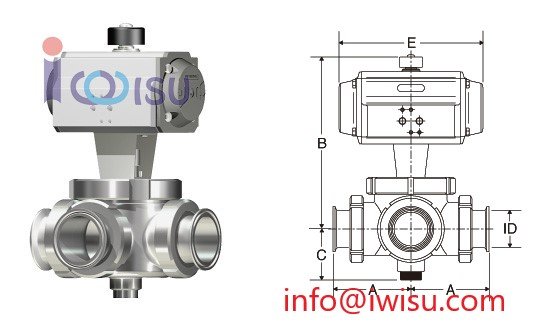

Nom.size ID A B C E P MPa Connecting hole Mass kg Round Nut Spanner required for disassembly
Type SP-R Nom.size
1.0S 23 85 215 53 154 0.7 G1/8 Screw 5.6 58-65 and 80-85
1.5S 35.7 95 219 59 154 0.7 G1/Screw 8.5 70-75 and 92-100
2.0S 47.8 110 246 72 204 0.7 G1/Screw 14.3 92-100 and 120-130
2.5S 59.5 120 268 93 204 0.7 G1/Screw 21.8 105-115 and 140-150
3.0S 72.3 130 284 99 204 0.7 G1/Screw 25.6 120-130 and 155-165
3.5S 85.1 150 319 111 269 0.7 G1/Screw 35.4 140-150 and 175-195
4.0S 97.6 155 327 116 269 0.7 G1/Screw 40.3 140-150 and 200-250

VAN KHÍ NÉN OSAKA 3 NGÃ BN3-PW

Osaka Pneumatic Ball Valves 3-way (Double Action) BN3-PW Osaka
