VAN TAY XE OSAKA FT1R – 3100

PNEUMATIC TANK VALVES OSAKA FT1R – 3100

Các tên gọi khác: VAN TAY XE OSAKA FT1R – 3100, VAN TAY XE OSAKA 3100, VAN OSAKA FT1R -3100

* THÔNG SỐ KỸ THUẬT:

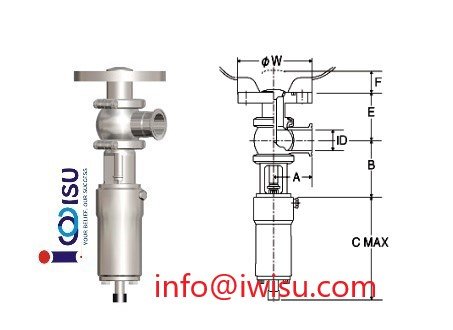

Nom.size	ID	A	B	C MAX	E	F	W	Cylinder Type	Mass kg
Nom.size	ID	Ferrule Screw	B	C MAX	E	F	W	Cylinder Type	Mass kg
1.0^S	23	55	90	166	74	17.5	125	S63	4.7
1.5^S	35.7	70	96.5	174	80.5	25.5	140	S63	6.1
2.0^S	47.8	82	138	239	93	39	155	S100B	11.7
2.5^S	59.5	105	144	243	104	45	175	S100B	14.0
3.0^S	72.3	110	160	243.5	110	48	185	S125	16.9
3.5^S	85.1	125	166.5	243.5	116.5	48	195	S125	19.2
4.0^S	97.6	155	204	293	139	53	210	S200B	32.1

VAN TAY XE OSAKA FT1R – 3100

Pneumatic Tank Valves Osaka (Single Action) FT1R-3100
