OSAKA MANUALLY BALL VALVES, 3-WAY BN3-M
Email: info@iwisu.com
Phones: 090.860.1662

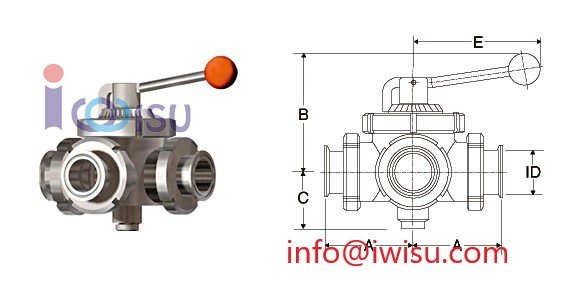

Nom.size | ID | A | B | C | E | Mass kg | Round Nut Spanner required for disassembly |
Type SP-R Nom.size | |||||||
1.0S | 23 | 85 | 130 | 53 | 160 | 4.2 | 58-65 and 80-85 |
1.5S | 35.7 | 95 | 134 | 59 | 160 | 6.0 | 70-75 and 92-100 |
2.0S | 47.8 | 110 | 144 | 72 | 160 | 10.2 | 92-100 and 120-130 |
2.5S | 59.5 | 120 | 173 | 93 | 207 | 17.3 | 105-115 and 140-150 |
3.0S | 72.3 | 130 | 189 | 99 | 207 | 21.2 | 120-130 and 155-165 |
3.5S | 85.1 | 150 | 207 | 111 | 277 | 27.6 | 140-150 and 175-195 |
4.0S | 97.6 | 155 | 215 | 116 | 277 | 32.1 | 140-150 and 200-250 |
