OSAKA PNEUMATIC OPERATION BUTTERFLY VALVES RB-PS

Email: info@iwisu.com

Phones: 090.860.1662

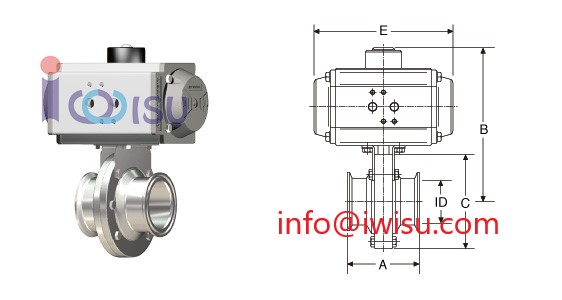

Nom.size	ID	A	B	C	E
Nom.size	ID	Ferrule・Male Male×Hexagon Nut	B	C	E
1.0^S	23	80	142	77	136
1.5^S	35.7	80	179	91	204
2.0^S	47.8	80	184	104	204
2.5^S	59.5	100	198	126	204
3.0^S	72.3	100	211	126	241
4.0^S	97.6	125	223	150	241

Nom.size	Mass kg
Nom.size	Ferrule	Male	Male×Hexagon Nut
1.0^S	2.22	2.14	2.26
1.5^S	4.30	4.46	4.54
2.0^S	4.58	4.86	5.00
2.5^S	5.36	5.56	5.82
3.0^S	6.42	6.70	7.06
4.0^S	7.54	8.04	8.88

Pneumatic Operation Butterfly valves RB-PS Osaka
