Pneumatic Operation Butterfly valves RB-PW Osaka

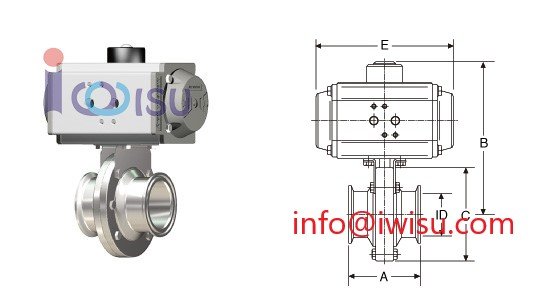

Nom.size ID A B C E
Ferrule・Male
Male×Hexagon Nut
1.0S 23 80 142 77 136
1.5S 35.7 80 149 91 136
2.0S 47.8 80 170 104 154
2.5S 59.5 100 184 126 154
3.0S 72.3 100 198 126 204
4.0S 97.6 125 210 150 204



Nom.size Mass kg
Ferrule Male Male×Hexagon Nut
1.0S 2.14 2.06 2.18
1.5S 2.24 2.40 2.48
2.0S 3.02 3.30 3.44
2.5S 3.76 3.96 4.22
3.0S 4.92 5.20 5.56
4.0S 6.04 6.54 7.38
Pneumatic Operation Butterfly valves RB-PW Osaka
