VAN OSAKA TAY CẦM FT1R 3000

MANUAL TANK VALVES – FT1R 3000

Osaka Manual Tank Valves – FT1R-3000

Các tên gọi khác: VAN TAY OSAKA FT1R , VAN TAY CẦM FT1R, VAN OSAKA TAY CẦM FT1R 3000, VAN OSAKA SANITARY 3000

The tank flange (optional) is also available in order to attach to the tank side.

Mặt bích bể (tùy chọn) cũng có sẵn để gắn vào phía bể.

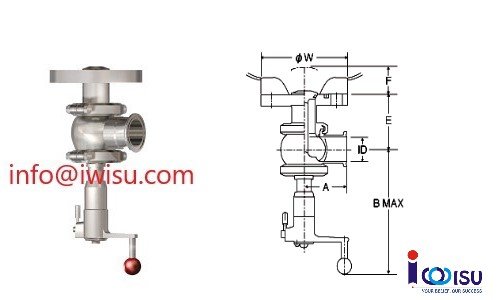

Nom.size	ID	A	B MAX	E	F	W	Mass kg
Nom.size	ID	Ferrule Screw	B MAX	E	F	W	Mass kg
1.0^S	23	55	161	74	17.5	125	2.9
1.5^S	35.7	70	175.5	80.5	25.5	140	4.3
2.0^S	47.8	82	229	93	31	155	6.6
2.5^S	59.5	105	239	104	37	175	8.9
3.0^S	72.3	110	359	110	44	185	11.0
3.5^S	85.1	125	365.5	116.5	44	195	13.2
4.0^S	97.6	155	450	139	49	210	21.3

VAN OSAKA TAY CẦM FT1R 3000
