VAN AN TOÀN YNV, MODEL FSV-3F

Full Bore Safety Relief Valve YNV FSV-3F

FSV-3F

fsv-3f_01_main

fsv-3f_01_main

fsv-3f_02
Specifications
Type Working Fluid Setting Pressure Working Temperature Materials Connection
Body & Bonnet Trim
Lever Steam, Air 22~23 MAX. 250˚C Cast Steel Stainless Steel JIS Flanged
ANIS Flanged
No Lever Water, Oil

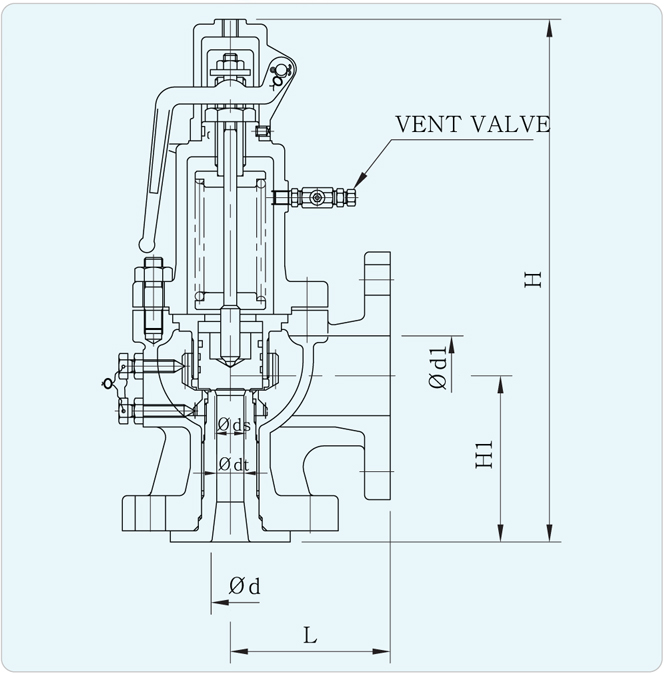

Dimensions
PART d dt ds L H1 H LIFT Inlet Outlet
SIZE
15A X 25A 15 11.5 14.5 95 85 282 3.0 JIS 30K RF Flanged JIS 10K FF Flanged
20A X 25A 20 15 17.5 95 85 282 3.8
25A X 40A 25 19 22 100 105 320 4.8
40A X 65A 40 30 35 115 123 380 7.5
50A X 80A 50 38 44 128 130 476 9.5
65A X 100A 65 49 57 145 150 547 12.3
80A X 125A 80 61 71 162 168 598 15.2
100A X 150A 100 76 114 220 222 895 24.0
