VAN GIẢM ÁP CHO HƠI YNV PIR-1F / PIR-2F
Pressure Reducing Valve For Steam YNV PIR-1F / PIR-2F
PIR-1F / PIR-2F
- The mechanism that automatically adjusts the pressure in pressure reducing valves uses the balance between the steam pressure and the adjustment spring.
- The steam flowing through the pilot valve is controlled by the balance between the adjustment spring and the secondary pressure.
- This steam causes the piston to fall and rise, which controls the amount of opening of the main valve

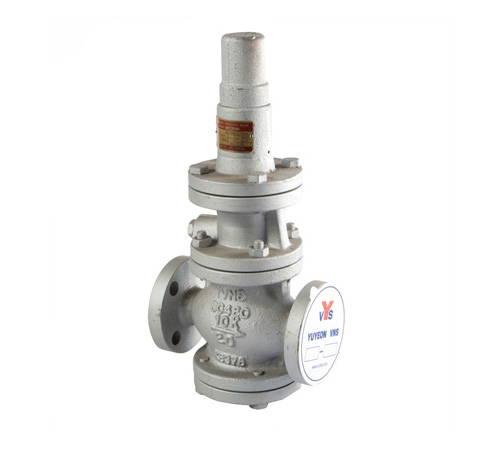

VAN GIAM AP YNV PIR-1F
| PIR-1F | PIR-2F | |
|---|---|---|
| Inlet Pressure (kgf/cm2g) | 10 | 20 |
| Outlet Pressure (kgf/cm2g) | 0.35~7 | 0.35~7 |
| Max Reducing Ratio | 10 : 1 | 10 : 1 |
| Working Temperature(˚C) | 220 | 220 |
| Working Fluid | Steam | Steam |
| Connection | JIS 10K Flanged | JIS 20K Flanged |
| Materials | Body : Ductile Iron | Body : Cast Steel |
| Trim : Staniless Steel | Trim : Staniless Steel |
| SIZE | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART | |||||||||||||
| L | 170 | 170 | 170 | 200 | 200 | 220 | 250 | 290 | 320 | 350 | 395 | 560 | 650 |
| H1 | 75 | 75 | 75 | 85 | 85 | 95 | 105 | 125 | 130 | 148 | 466 | 620 | 266.5 |
| H | 357 | 357 | 357 | 375 | 375 | 395 | 415 | 440 | 465 | 459 | 181 | 250 | 685.4 |
