VAN GIẢM ÁP YNV DRS-1S
| Inlet Pressure (kgf/cm2g) | 10 |
|---|---|
| Outlet Pressure (kgf/cm2g) | 0.8~3 |
| Max Reducing Ratio | 10 : 1 |
| Working Temperature(˚C) | 80 |
| Working Fluid | Water |
| Connection | PT Screwed |
| Materials | Body : Stainless Steel |
| Trim : Synthetic Rubber |

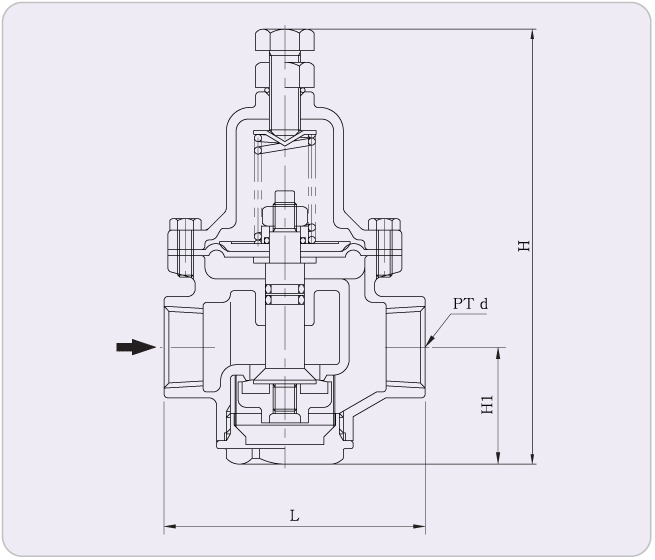

| SIZE | d | L | H1 | H |
|---|---|---|---|---|
| PART | ||||
| 15A | PT 1/2″ | 68 | 30 | 115 |
