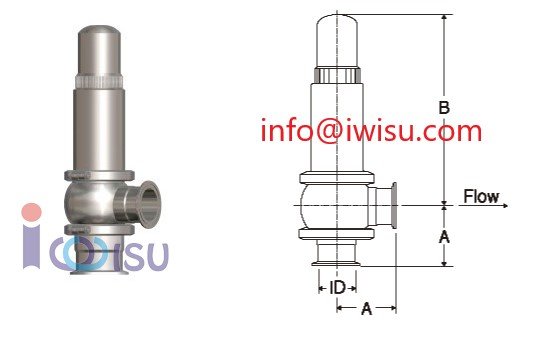

Relief Valves LN1N Osaka























Nom.size ID A B Setting pressure Mass kg
Ferrule
Screw
1.0S 23 55 184 0.05~0.8MPa 2.0
1.5S 35.7 70 201 0.05~0.6MPa 2.5
2.0S 47.8 82 263 0.05~0.64MPa 5.5
2.5S 59.5 105 294 0.05~0.55MPa 7.7
3.0S 72.3 110 345 0.05~0.26MPa 11.6
3.5S 85.1 125 351.5 0.05~0.19MPa
4.0S 97.6 155 364 0.05~0.14MPa 18.5
Relief Valves LN1N Osaka
