VAN GIẢM ÁP YNV MODEL PRG-1F

Pressure Reducing Valve PRG-1F YNV

PRG-1F

PRESSURE REDUCING VALVE PRG-1F

Specifications
Inlet Pressure (kgf/cm²)	16
Outlet Pressure (kgf/cm²)	0.5~10
Working Temperature(˚C)	Max. 150
Working Fluid	Air, Water,Oil
Type	Piston Type
Connection	JIS 10K(16K) Flanged
Materials	Body : Ductile Iron
Materials	Trim : Stainless Steel, Synthetic Rubber

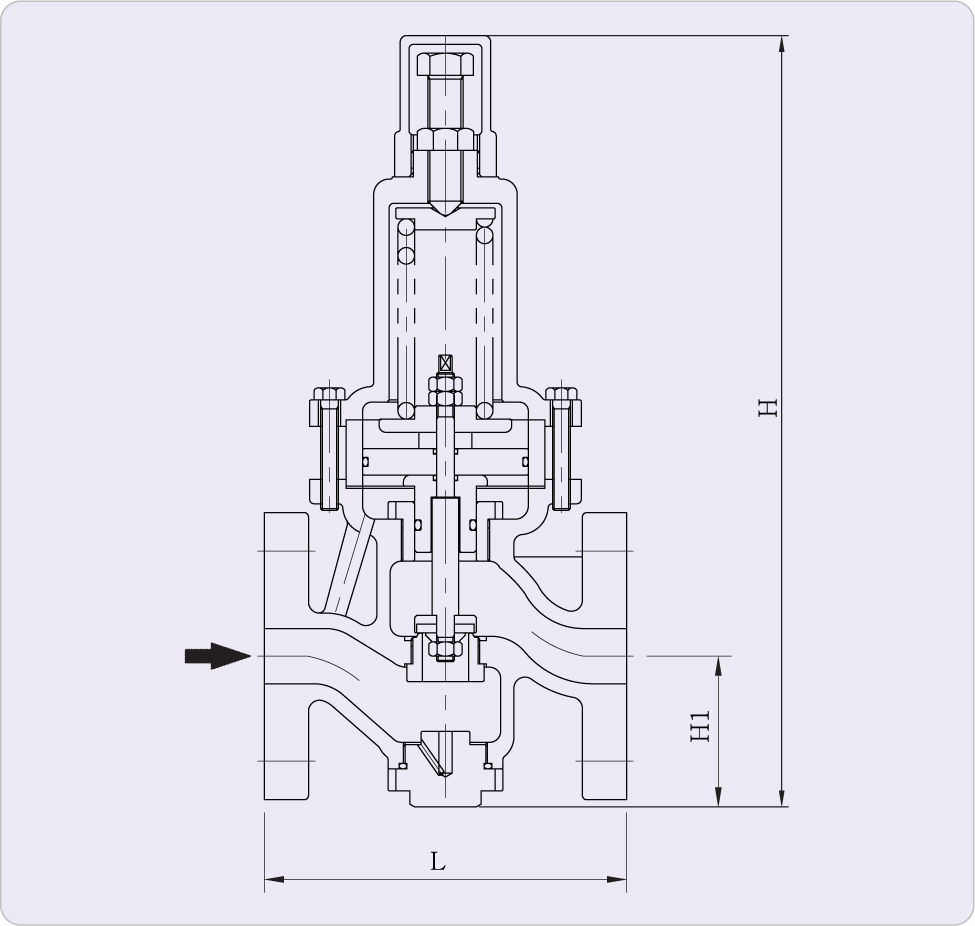

Dimensions
SIZE	15A	20A	25A	32A	40A	50A	65A	80A	100A	125A	150A
PART	15A	20A	25A	32A	40A	50A	65A	80A	100A	125A	150A
L	160	160	160	180	180	190	230	250	300	370	400
H1	65	65	65	76	76	78	95	107	124	145	160
H	361	361	361	436	436	445	554	574	651	791	827
