Swing Check Valve ASME cl. 150-600, 2“-16“, Serie 491

Features overview
– Body material A216 WCB, A182-F316, A352-LCB
– Face to Face dimension acc. ASME B16.10
– Flange connection acc. ASME B16.5
– Testing acc. to API 598
– Temperature range:
– 30°C up to +400°C for A182/316
– 20°C up to +350°C for A216/WCB
– 56°C up to +400°C for A352-LCB

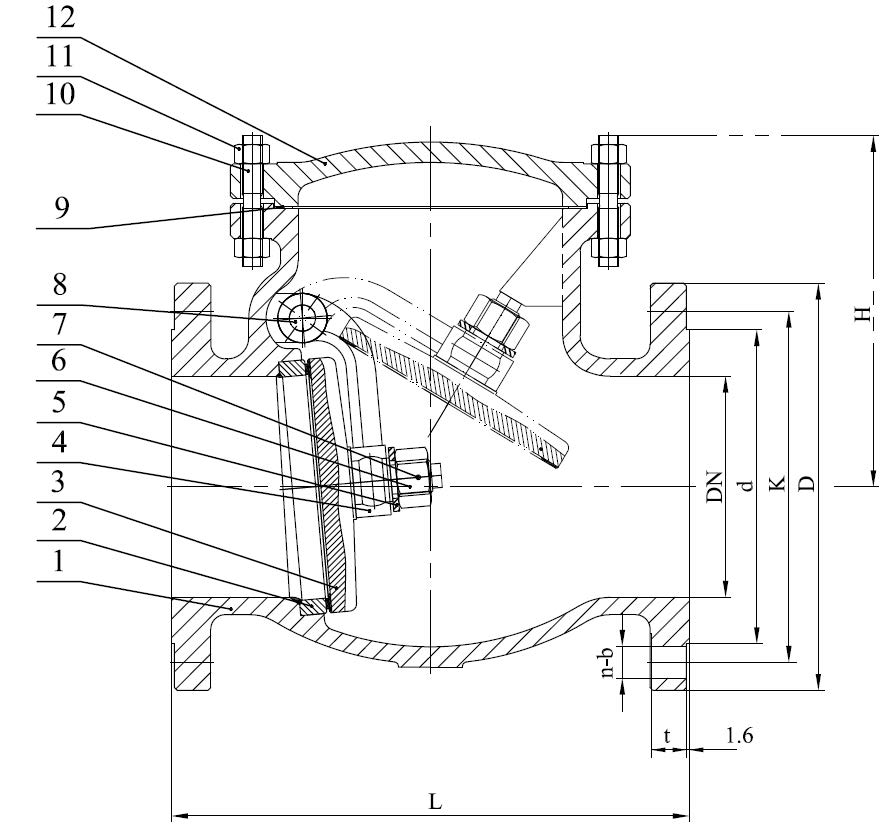

Swing-Check Valve flanged made of stainless steel or cast steel in straightway form.

Swing Check Valve ASME
