Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm GATE VALVES được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của GATE VALVES không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Large hand wheel for easy operation, and worm gear box, motor actuators, pneumatic actuators , hydraulic actuators are all available for all bolted bonnet wedge gate valves

Basic Information

Type: Gate Valves

Size: DN50-DN1500(2”-60”)

Pressure Rating: PN10-PN420, CL150-CL2500

Body Material: WCB, CF8, CF8M, CF3M, CN7M,4A, 5A, etc.

Trim Material: SS304, SS316, SS316L, Alloy 20 or on customers’ request

End Connection: Flange End, butt welding end, EN1092-1, DIN 2501, ASME B16.5

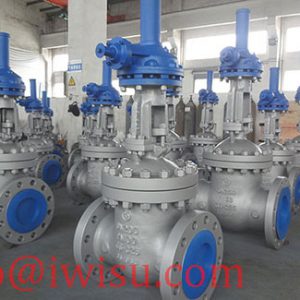

CHINA GATE VALVE 1GATE VALVE

Design

Foyo provides flange ends, and butt welding ends for Gate valves, including bolted bonnet wedge gate valves and pressure seal bonnet wedge gate valves.

1 Bolted Bonnet Wedge Gate Valves

Bolted Bonnet Wedge Gate ValvesBolted Bonnet Wedge Gate Valves

2 Pressure Bonnet Wedge Gate Valves

2 Pressure Bonnet Wedge Gate Valves2 Pressure Bonnet Wedge Gate Valves

Large hand wheel for easy operation, and worm gear box, motor actuators, pneumatic actuators , hydraulic actuators are all available for all bolted bonnet wedge gate valves.

Large hand wheel for easy operationLarge hand wheel for easy operation

Live Load Packing

In some services, frequent operation is required, and the medium is high pressure and high temperature, live loaded packing reduces maintenance time and extends the service life of the wedge gate valves.

Live Load PackingLive Load Packing

End connections

End connectionsEnd connections

Design Standards for Gate Valves:

Steel Gate Valves, API 600/API 6D/API 602

Steel Gate Valves, ISO 10434, ISO 14313

Steel Valves, ASME B16.34

Face-to-Face dimension, ASME B16.10

End Flanges, ASME B16.5

Butt Welding ends, ASME B16.25

Socket welding ends, ASME B16.11

Inspection and testing, API 598/API 6D

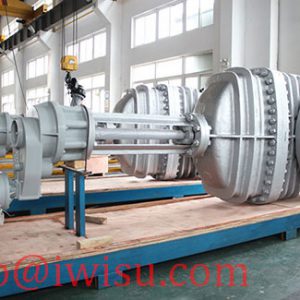

CHINA GATE VALVE 4GATE VALVE

Design Description for Gate Valves:

Full port design

OS&Y, outside screw and Yoke

BB-Bolted bonnet and PSB-Pressure Seal Bonnet

Flexible Wedge, Fully Guided

Choice of solid or split wedges

Renewable seat rings

Forged T-head stem

Rising stem and Non-rising hand wheel

Flanged or butt welding ends

Available with Bevel gear box
