GLOBE VALVES
GLOBE VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm GLOBE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của GLOBE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

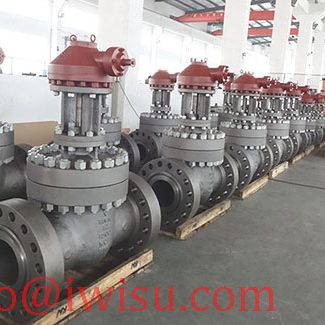

Foyo provides flange ends, and butt welding ends for this product, including bolted bonnet wedge globe valves and pressure seal bonnet wedge globe valves
Basic Information
Type: Globe Valve
Size: DN50-DN400(2”-16”)
Pressure Rating: PN10-PN420, CL150-CL2500
Body Material: WCB, CF8, CF8M, CF3M, CN7M，4A， 5A, etc.
Trim Material: SS304, SS316, SS316L, Alloy 20 or on customers’ request

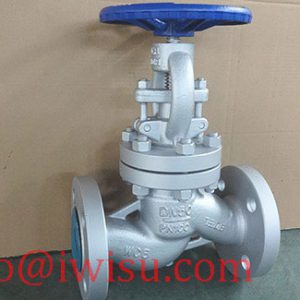

End Connection: Flange End, butt welding end, EN1092-1, DIN 2501, ASME B16.5
GLOBE VALVE

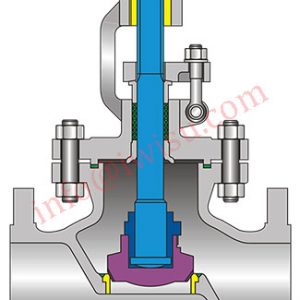

Design
Foyo provides flange ends, and butt welding ends for this product, including bolted bonnet wedge globe valve and pressure seal bonnet wedge globe valve as per BS 1873
GLOBE VALVE
1 Operating: Variable actuators, including hand wheel, pneumatic actuator and electric motors are all available for Foyo globe valve.
2 Live Load Packing: In some severe applications, frequent operation is required, and the medium is high pressure and high temperature, live loaded packing reduces maintenance time and extends the service life of the wedge globe valve.
GLOBE VALVE
3 OS&Y: Outside screw and Yoke, Casting steel yoke is integral with the bonnet for sizes 10” and smaller for this product.
4 Bolted bonnet, Welding bonnet and Pressure seal bonnet: Bolted bonnet design is for general globe valves, welding bonnet and pressure seal bonnet are especial for this product which are used in high temperature and high pressure applications.
5 End Connection: RF and RTJ flanged and Butt welding ends are both available for our valves.
6 Yoke Sleeve: Furnished in aluminum bronze to reduce the operating torque of globe valve.
7 Lantern ring and double packing set: Lantern ring with leak-off fitting connection and double packing stack design is available for this product used in severe applications.
8 Body-to-Bonnet Joint: Male-Female joint or Tongue-Groove joint is used for CL150-CL600 globe valve. Ring joint is used for CL900 and higher pressure ratings.
9 Disc: Plug disc is stem guided on all sizes. Disc has a differential angle to provide a lined contact for perfect sealing properties of globe valve.
10 Seat rings: Separate heavy duty and full bore seat ring is designed for easy maintenance. Generally the seat ring is threaded or welded to the body of globe valves.
GLOBE VALVE
Design Standards:
Steel Globe Valve, BS 1873
Steel Valves, ASME B16.34
Face-to-Face dimension, ASME B16.10
End Flanges, ASME B16.5
Butt Welding ends, ASME B16.25
Design Description:

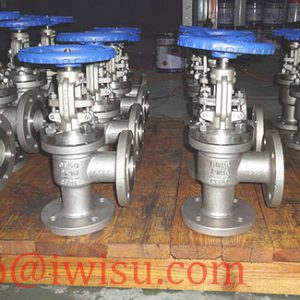

Straight pattern and angle body design
OS&Y, outside screw and Yoke
BB-Bolted bonnet , Welding bonnet and PSB-Pressure Seal Bonnet
Yoke is integral with bonnet
Rising stem and hand wheel
plug and ball type disc are both available
Renewable seat ring
For horizontal installation
Flanged or butt welding ends
Available with variable operators.
