FORGED STEEL GATE VALVES
FORGED STEEL GATE VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm FORGED STEEL GATE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của FORGED STEEL GATE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.
Foyo provides flange ends, Socket welding ends and butt welding ends for Forged Steel Gate valves, including bolted bonnet forged steel gate valves, welded bonnet forged steel gate valves and pressure seal bonnet forged steel gate valves.
Specification:
Type: Forged Steel Gate Valves
Size: DN15-DN50(2”-4”)
Pressure Rating: PN10-PN420, CL150-CL2500
Body Material: A105, LF2, F5, F11, F22, F304, F316, F316L, F347, F321, F51, Monel, Alloy 20, etc.
Trim Material: F304, F316, F316L, F347, F321, F51, Monel, Alloy 20, etc. or on customers’ request
End Connection: Flange End, butt welding end, Socket welding end. EN1092-1, DIN 2501, ASME B16.5

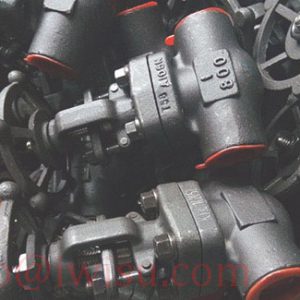

FORGED STEEL GATE VALVE
Design
Foyo provides flange ends, Socket welding ends and butt welding ends for Forged Steel Gate valves, including bolted bonnet forged steel gate valves, welded bonnet forged steel gate valves and pressure seal bonnet forged steel gate valves.
Bolted Bonnet, Welded Bonnet and Pressure Seal Bonnet
FORGED STEEL GATE VALVE SERIES
Design Standards for Forged Steel Gate Valves:
Design and manufacture per API 602, BS5352, ASME B16.34
Face-to-Face dimension, ASME B16.10
End Flanges, ASME B16.5
Butt Welding ends, ASME B16.25
Socket welding ends, ASME B16.11
Threaded ends, ASME B1.20
Inspection and testing, API 598/API 6D
Design Description for Forged Steel Gate Valves:
Bolted Bonnet
Outside screw and yoke
Welded bonnet, outside screw and yoke
Two pieces self-aligning packing gland
Bonnet with spiral wound gasket
