FLOATING BALL VALVES
FLOATING BALL VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm FLOATING BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của FLOATING BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.
All our floating ball valve meet the requirements of API 608 and API 6D, BS5351, ASME B16.34. A complete range of body and trim materials are available.
Basic Information
Type: Floating Ball Valve
Size: DN15-DN300(1/2”-12”)
Pressure Rating: PN10-PN100, CL150-CL600
Body Material: WCB, A105, CF8, F304, CF8M, F316, CF3M, F316L, LCB, LF2, etc.
Trim Material: SS304, SS316, SS316L, or on customers’ request.
End Connection: Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5
BALL VALVES
Design
Foyo floating ball valve are designed and manufactured to provide maximum service life and reliability. All our floating ball valve meet the requirements of API 608 and API 6D, BS5351, ASME B16.34. A complete range of body and trim materials are available.

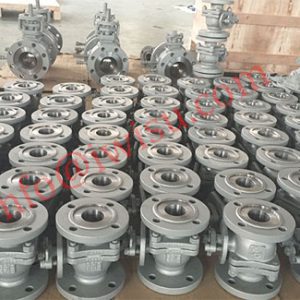

FLANGE BALL VALVES
Available Modifications for Foyo floating ball valve:
Trim material
Flanged or Butt welding end connection
Stem Packing and Gasket materials
Operation type (Manual, Pneumatic, Electric, etc.)
Pressure rating
Anti-Static and Fire-safe Design
Anti-Static and Fire-safe Design
Product description
1 Operating: Extended Lever for easy operation, Gear box, Pneumatic actuator, electric actuators and hydraulic actuators are all available for Foyo floating ball valves to meet customers’ requirements.

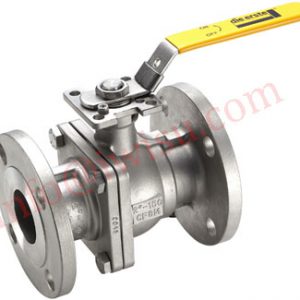

2 Body and Bonnet: Split body and 3-piece body are both available for our floating ball valves. Generally the split body is for cast body and 3-piece body is for forged body.
Body and Bonnet
3 Bore: By default Foyo floating ball valve are all full bore, however reduced bore is also available.
4 End connections: RF and RTJ flanged or Butt welding end are all available for Foyo floating ball valves.
5 Stem Packing: Standard stem packing is multiple V-PTFE, spring live loaded packing and graphite packing can be designed for high temperature applications.
Stem Packing
6 Anti-Static Device: A metallic ball and spring contact is designed between ball and stem to discharge statics ‘
7 DBB: Double block and bleed design. The body cavity of floating ball valves is isolated when the ball is at either fully closed or fully open position. The medium entrapped in the cavity can be easily be bled out to avoid overpressure.
8 Fire-Safe Design: Fire-Safe design as per API 607. Floating ball valves ordered in compliance with API 607 will be provided with flexible graphite packing and gaskets.
Design Standards for Floating ball valve:
Steel Ball Valves, API608 and API 6D
Steel Ball Valves, ISO 14313
Fire Durable , API 607
Anti-Static, API 608
Steel Valves, ASME B16.34
Face to Face Dimension, ASME B16.10
End Flanges, ASME B16.5
Butt Welding ends, ASME B16.25
Inspection and testing, API 598, API 6D
Design Description for Floating ball valve:
Full bore or Reduced bore
Bolted bonnet, Split Body and 3-piece body
Casting steel body and Forged steel body
Floating ball
Blow out proof stem
Fire durable structure
Anti-static device
Stopper device
ISO 5211 mounting pad
Available with worm gear, pneumatic and electric actuators.
