TRUNNION MOUNTED BALL VALVES

TRUNNION MOUNTED BALL VALVES

TRUNNION MOUNTED BALL VALVES

Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm TRUNNION MOUNTED BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của TRUNNION MOUNTED BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

All our trunnion mounted ball valve meet the requirements of API 608 and API 6D, BS5351, ASME B16.34. A complete range of body and trim materials are available.

Basic Information

Type: Trunnion Mounted Ball Valve

Size: DN50-DN900(2”-36”)

Pressure Rating: PN10-PN420, CL150-CL2500

Body Material: WCB, A105, CF8, F304, CF8M, F316, CF3M, F316L, LCB, LF2, etc.

Trim Material: SS304, SS316, SS316L, or on customers’ request.

End Connection: Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5

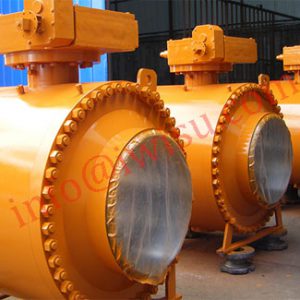

TRUNNION MOUNTED BALL VALVES 4TRUNNION MOUNTED BALL VALVE

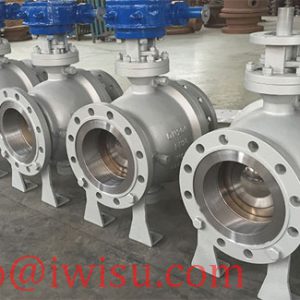

TRUNNION MOUNTED BALL VALVES 3TRUNNION MOUNTED BALL VALVE

Design

Foyo trunnion mounted ball valve are designed and manufactured to provide maximum service life and reliability. All our trunnion mounted ball valves meet requirements of API 608 and API 6D, BS5351, ASME B16.34. A complete range of body and trim materials are available.

TRUNNION MOUNTED BALL VALVES 2TRUNNION MOUNTED BALL VALVE

Available Modifications for Foyo trunnion mounted ball valve:

Trim material

End connection

Packing and Gasket materials

Operation ( Manual, Pneumatic, Electric, etc.)

Pressure Equalizing

Anti-Static and Fire-safe Design

TRUNNION MOUNTED BALL VALVES 5TRUNNION MOUNTED BALL VALVE

Product description

1 Operating: Extended Lever for easy operation, Gear box, Pneumatic actuator, and electric motors are all available for Foyo trunnion mounted ball valves.

2 Body and Bonnet: Split body and 3-piece body are both available for our trunnion mounted ball valves. Generally split body is for 12” and smaller.

3 Bore: By default trunnion mounted ball valves are all full bore, and reduced bore is also available.

4 End connections: RF and RTJ flanged body or Butt welding end are all available for our trunnion mounted ball valves.

5 Stem Packing: Standard stem packing is multiple V-PTFE, spring live loaded packing and graphite packing can be designed for high temperature applications.

TRUNNION MOUNTED BALL VALVES 7TRUNNION MOUNTED BALL VALVE

6 Anti-Static Device: A metallic contact is designed between ball and stem to discharge statics.

7 DBB: Double block and bleed design. The body cavity of trunnion mounted ball valves is isolated when the ball is at either fully closed or fully open position. The medium entrapped in the cavity can be easily bled out to avoid overpressure.

8 Fire-Safe Design: Fire-Safe design as per API 607. Trunnion mounted ball valve ordered in compliance with API 607 will be provided with flexible graphite packing and gaskets.

Design Standards for Trunnion Mounted Ball Valve:

Steel Ball Valves, API608 and API 6D

Steel Ball Valves, ISO 14313

Fire Durable , API 607

Anti-Static, API 608

Steel Valves, ASME B16.34

Face to Face Dimension, ASME B16.10

End Flanges, ASME B16.5

Butt Welding ends, ASME B16.25

Inspection and testing, API 598, API 6D

Design Description for Trunnion Mounted Ball Valve:

Full bore or Reduced bore

Bolted bonnet, Split Body

Three piece body design for 12” and larger size

Trunnion mounted ball

Blow out proof stem

Fire durable structure

Anti-static device

Stopper device

ISO 5211 mounting pad

Available with worm gear, pneumatic and electric actuators.
