Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm ROTATING DOUBLE DSIC GATE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của ROTATING DOUBLE DSIC GATE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Ceramic rotating double disc valves have been widely used In many bulk material handling systems, such as coal fired power plant, steel plant, cereals transport system, cement transport systems, and so on.

Specification:

Type Ceramic Rotating Double Disc Valves
Size DN25-DN400(1”-16”)
Pressure Rating PN10, PN16, PN25, PN40, CL150, CL300, and CL600 are also available per customer’s requirement.
Body Material WCB, CF8
Trim Material WCB+Al2O3 Ceramics, WCB+ZrO2 Ceramics, WCB+Solid Tungsten Carbide, WCB+Stellite
End Connection Flanged type, Wafer Type, EN1092-1, DIN 2501, ASME B16.5

Typical Applications:

Same to ceramic double disc valves, ceramic rotating double disc valves have been widely used in many bulk material handling systems, such as coal fired power plant, steel plant, cereals transport system, cement transport systems, and so on. Generally in these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability. Because there is huge abrasion for this system, sealing surface and flow path of valves are destroyed seriously by high speed solid materials. Foyo develops ceramic rotating double disc valves for these severe applications which work quite well in many coal fired power plants all over the world.
ceramic rotating double disc valves are suitable for any bulk materials handling system including the mediums listed as below:

  • Silicon Powder
  • Alumina Powder
  • Coal Powder
  • Cement
  • Lime Stone Powder
  • Magnesium Powder
  • Quartz Sand
  • Metallurgical dust
  • Ores
  • Fly Ash
  • Granules

If your working service is not listed above and you are not sure if Foyo ceramic rotating disc valve is suitable for your systems, please feel free to contact Foyo’s experienced engineer for professional proposals.

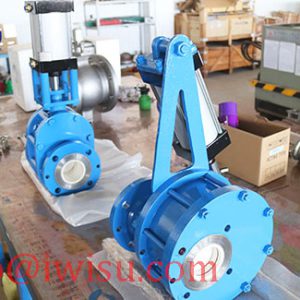

CERAMIC ROTATING DOUBLE DSIC VALVES - 5

ROTATING DOUBLE DSIC VALVES

Design Features:

Product type

The ceramic rotating disc valve is ceramics-to-ceramics sealing and parallel double discs. However if it’s used as a gravity discharge valve, single disc design is much better than double disc design. By applying double disc valve design for this valve, when valve is shut off, bulk material will drop into tank because of its gravity and will not accumulate in the valve body. Thus ceramic rotating double disc valves will never been blocked.
The standard end connection of ceramic rotating disc valve is flanged type, but if installation space is limited, wafer type body is available. Foyo can provide any end connection per customers’ requirement.
Self-cleaning disc design allows the discs to move freely and avoid being scratched by solid particles.

Temperature range

Usually working temperature of pneumatic conveying system is not so high, but under some special conditions like economizer valves in coal fired power plant, working temperature may be up to 450 ℃. Then special design of ceramics and packing material will be considered.

Normal working temperature of ceramic rotating double disc valves: -29 °C ~ +200 °C
High temperature design of ceramic rotating double disc valves: -29 °C ~ +450 °C

Valve tightness

The tightness of ceramic rotating disc valve is very important. Foyo has advanced ceramic processing technology and skilled technicians, all ceramic sealing faces of ceramic rotating double disc valves are well ground and polished, which ensure Class V leakage as per FCI 70-2.
Other tightness rates upon request.
Foyo ceramic rotating double disc valves have much longer service life than other similar products.

Design standards

Valve body ASME B16.34
Face-to-Face: Manufacturer’s Standard, customized length of ceramic rotating double disc valves is available.
Valve Testing as per API 598

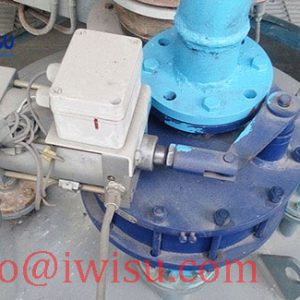

CERAMIC ROTATING DOUBLE DSIC VALVES - 5

ROTATING DOUBLE DSIC VALVES

The structure of FOYO ceramic rotating double disc valve is as the following exploded drawing.

Ceramic Rotating double Disc Valves

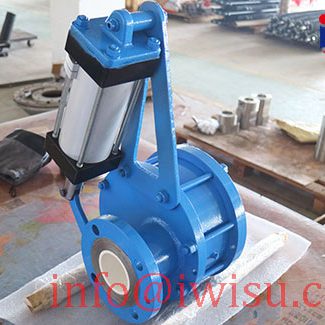

CERAMIC ROTATING DOUBLE DSIC VALVES - 5

ROTATING DOUBLE DSIC VALVES

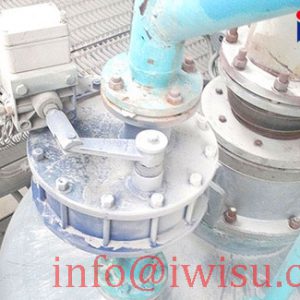

CERAMIC ROTATING DOUBLE DSIC VALVES - 5

ROTATING DOUBLE DSIC VALVES

No. Part Name Material
1 Pneumatic Cylinder Aluminum Aluminum
2 Body WCB CF8
3 Stem 17-4PH 17-4PH
4 Swing Arm WCB CF8
5 Disc WCB+Ceramics CF8+Ceramics
6 Seat Ceramics Ceramics
7 Adapter WCB CF8
8 Yoke AISI 1020 SS304
9 Driving Arm WCB CF8
