Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm DIN STANDARD CERAMIC BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của DIN STANDARD CERAMIC BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

DIN Standard Ceramic Ball Valves for PCI System is specially designed as per DIN and EN flange and face-to-face dimension standard.

Specification:

Type: DIN Standard Full Lined Ceramic ball Valves for Pulverized coal injection System
Size: DN15-DN200(1/2”-8”)
Pressure Rating: PN10,PN16,PN25,PN40,CL150,CL300,JIS10K,  JIS 20K
Body Material: WCB, A105, SS304, SS316, SS316L
Trim Material: ZrO2, 99% Al2O3,99.7%Al2O3
End Connection: DIN/EN1092-1
Face to Face Dimension: DIN 3202,  DIN/EN 558-1, Series 3

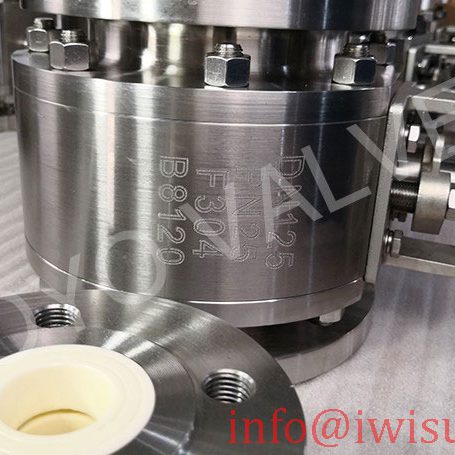

DIN STANDARD CERAMIC BALL VALVES FOR PCI SYSTEM - 4

DIN STANDARD CERAMIC BALL VALVES

Background:

Pulverized coal injection (PCI) method was developed in the 19th century,

The PCI method is based on the simple concept of primary air (termed the “conveying gas”) carrying pulverized coal which injected through a lance to the mid-bottom inlet of a blast furnace, then mixed with secondary hot air (termed the “blast”) supplied through a blowpipe in the tuyere and then piped to a furnace to create a balloon-like cavity called a “raceway”, which then propagates coal and coke combustion and melts the solid iron ore, releasing molten iron. The most remarkable aspect of this method is that it allows for cheaper coal to be consumed in the system, replace expensive coke, thereby remarkably cutting down on costs. Because of the severe environment inside the furnace, (>2000K), visual observation of raceway shape and size is impossible, therefore remotely measuring sensors are used to investigate the chemical and physical reactions inside the furnace.

However, the high speed pulverized coal powder is very abrasive, pepe fittings and valves are essily to be worn. Especially the sealing face of the valves. leakage will cause big failure of the system. When advanced ceramics are used for valves in pulverized coal powder system, things were become much better.

The hardness of pure >99% alumina ceramics and high strength zirconia ceramics is more than HRA 88, much harder than coal powder. Technical engineers from FOYO have much experience in PCI system in steel plant, the disign and structure of FOYO ceramic ball valves are optimized and improved specially for PCI system.

DIN STANDARD CERAMIC BALL VALVES FOR PCI SYSTEM - 3

CERAMIC BALL VALVES FOR PCI SYSTEM

On the other hand, Foyo has powerful technical team and can respond quickly to user requirements. we developed DIN/EN standard full lined ceramic ball valves for customers all over the world.

It has been proved that Foyo’s full lined ceramic ball valves for PCI system have excellent stability and reliability, more than 5 times service life than commen metal seated ball valves, even longer, which reduce much maintenance time and cost.

Customerized flange and face-to-face dimension is optional.
