Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm FLOATING CERAMIC BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của FLOATING CERAMIC BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Floating Type Ceramic Ball Valve is used in high corrosive and high abrasive applications, such as lime slurry, fly ash pneumatic conveying system, PCI coal powder injection in steel plant

Specification:

Type Floating Type Ceramic Ball Valves
Size DN15-DN100(1/2”-4”)
 Pressure Rating PN10,PN16,PN25,PN40,CL150,CL300,JIS10K,    JIS 20K
 Body Material WCB, A105,  SS304,SS316,SS316L
 Trim Material ZrO2, 99%    Al2O3,99.7%Al2O3,SSIC, STC(Solid Tungsten Carbide), Si3N4
 End Connection Flange, ASME  B16.5, EN1092-1,   JIS B2220

Typical Applications:

In many corrosive or/and abrasive applications, PTFE or PFA lined ball valves and metal seated ball valves are used, but limited to the material, these PTFE or PFA lined ball valves and metal seated valves cannot last for a long time due to severe abrasion and corrosion. Floating Ceramic ball valve have excellent performance and much longer life time than soft seated and metal seated ball valves in most corrosive and abrasive applications. Some typical applications listed below (but not limited to these applications) where FOYO Floating Ceramic ball valve have been widely used all over the world: Silicon Powder,Alumina Powder,Dry Coal Powder,Limestone Slurry,Gypsum Slurry,Plaster,Fly Ash,Mining Ore,Coal Powder Injection,Metallurgical dust,Thermal Power plant FGD,Petroleum Solid Catalyst,TiO2 suspension with sulfuric acid,Ammonia solution with powder,Hydrochloric Acid,Liquid Chlorine,Bulk Material.FLOATING TYPE CERAMIC BALL VALVE - 1

FLOATING TYPE CERAMIC BALL VALVE

Design Features:

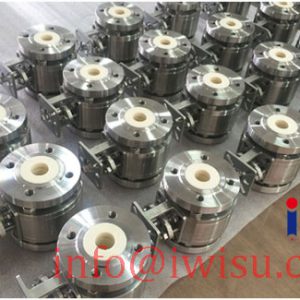

1. Forged steel 3 piece body design:

FOYO Floating Ceramic ball valve can fulfill existing connection requirements such as face-to-face dimensions and customers’ existing flange type.

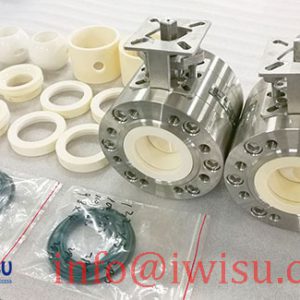

2. The wet parts are all ceramics – Ceramic fully lined:

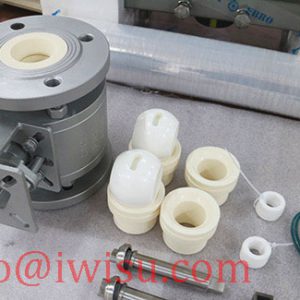

Ceramic components are assembled into forged metal body of Floating Ceramic ball valve which absorbs most physical loads and shock from piping lines.

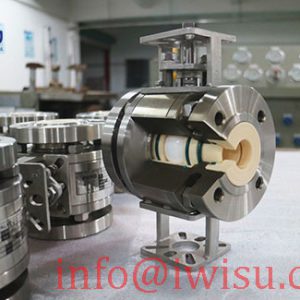

FLOATING TYPE CERAMIC BALL VALVE - 4

FLOATING TYPE CERAMIC BALL VALVE

3. Customized Actuation Types:

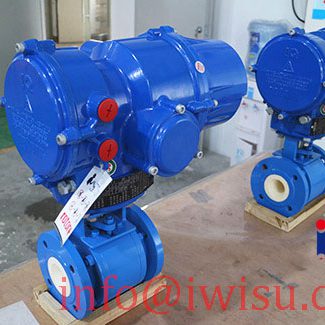

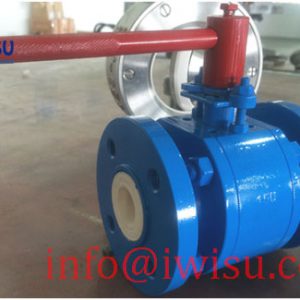

Actuator is connected to Floating Ceramic ball valve by a yoke that meets ISO 5211 specification including most pneumatic and electric actuators. The yoke is re-movable and easily modified to meet special requirements. Levers operated methods are also available for Floating Ceramic ball valve.

4. Corrosion Resistant:

Cold Isostactic Pressing (CIP) and high-temperature sintering nanometer high-purity 99% Al2O3 and 99.7% Al2O3 (alumina) and ZrO2 (zirconia) ceramics will not interact with almost all organic and inorganic chemicals, nor contaminate process medium. Their physically and chemically stability against most acids, salts and alkalis will last for many years with little or no corrosive degradation, which make sure that Floating Ceramic ball valve have excellent performance in corrosive applications.

FLOATING TYPE CERAMIC BALL VALVE - 2

FLOATING TYPE CERAMIC BALL VALVE

5. Abrasion Resistant:

The hardness of 99% alumina ceramics is about HRA88, harder than zirconia (about HRA85), solid tungsten carbide is about HRA 90,which is about 8 times harder than stainless steel. As valve trim, ceramic components make Floating Ceramic ball valve work well in the most severe abrasive conditions, such as pneumatic conveying to transport silicon powder, coal powder, Mg powder, etc.

6. Ceramic-to-Ceramic spherical seated:

The perfect fine grinded spherical seal between ceramic ball and seat ensure a Class VI shutoff. The anti-scratch design between ball and seat, which prevent sealing surface from being scratched by particles. The ceramic ball will not be stuck so ball will not be broken.

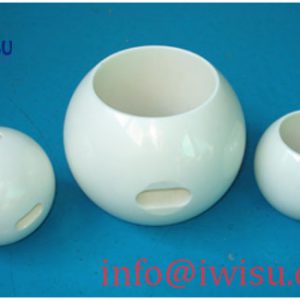

7. V-port balls and Round-port balls:

FOYO offers all size of Floating Ceramic ball valve two different port: Round-port and V-Port balls. In general, the round-port ceramic ball valve is often used as an on-off valve. If precise and stable control performance is required in any corrosive and abrasive applications, V-port Floating Ceramic ball valve with equal percent characteristics may be the best choice.
