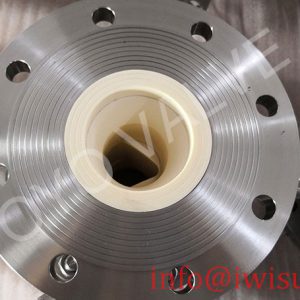

JACKETED CERAMIC BALL VALVE
JACKETED CERAMIC BALL VALVE
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm JACKETED BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của JACKETED BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.
Jacketed ceramics ball valves are especially used for abrasive and/or corrosive mediums that must be influenced through additional heating or cooling to avoid being crystallized or seized.
Typical applications for Foyo 2-Way jacketed ceramic ball valves:
Jacketed ceramics ball valves are especially used for abrasive and/or corrosive mediums that must be influenced through additional heating or cooling to avoid being crystallized or seized.
JACKETED BALL VALVE
Main Features and advantages:
The welded jackets consisting of two shells reach from flange to flange and assure consistent valve heating or cooling of the process medium to prevent crystallization or seizing of flow medium. The medium, such as bitumen, liquid sulfur, resins, etc. In addition, the efficient flow of medium is ensured through the elimination of pockets. Oil, steam, water, brine can be used as carrier for heating or cooling medium. The special valve design allows the hydrostatic and pneumatic examination of the valve body prior to the jacket welding process. Following our standard valve testing and inspection, every valve is tested again after the jackets have been welded onto the body.
Valve Design:
Jacketed ball valves can be supplied as 2-way with flanged ends. Thanks to the high performance of advanced ceramics, FOYO jacketed valves have outstanding corrosion resistance and abrasion resistance.
Specification
BODY : ASTM A105, ASTM A182 F304, F316
BALL : ZrO2 ceramics, Si3N4 Ceramics, Solid Tungsten Carbide Ceramics
STEM: SS304, SS316, Hastelloy C276
SEAT : 99% Alumina Ceramics, ZrO2 Ceramics, Si3N4 Ceramics, Solid Tungsten Carbide Ceramics
ENDS : FLANGED END , EN1092-1 PN10/PN16, ANSI 150LB
SIZE RANGE : DN15 to DN200, 1/2”-8”
