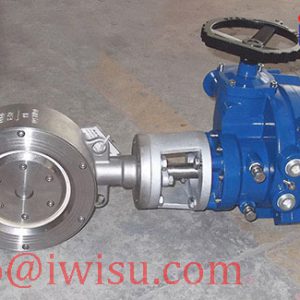

LUG TYPE CERAMIC BUTTERFLY VALVES

LUG TYPE CERAMIC BUTTERFLY VALVES

LUG TYPE CERAMIC BUTTERFLY VALVES

Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm LUG TYPE BUTTERFLY VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của LUG TYPE BUTTERFLY VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Specification:

Type  Lug Ceramic Butterfly Valves
Size DN50-DN300(2”-12”)
Pressure Rating PN6, PN10,PN16, CL150
Body Material WCB, CF8, CF8M, CF3M,CN7M
Trim Material 99% Al2O3 Ceramics, ZrO2 Ceramics, Si3N4, Solid Tungsten Carbide
End Connection Lug Type,EN1092-1, DIN 2501, ASME B16.5

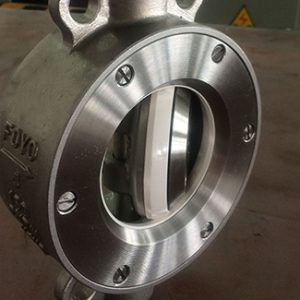

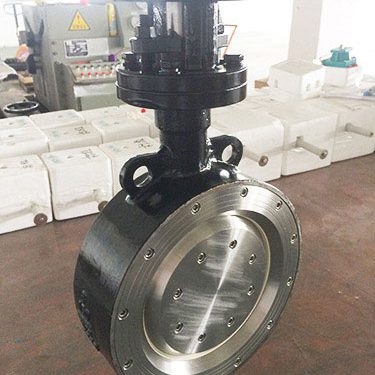

CERAMIC BUTTERFLY VALVESCERAMIC BUTTERFLY VALVES

Typical Applications:

For most mediums which contains solid particles, abrasion is a very troublesome problem for valves and pipe fittings. Butterfly valve is one of the most common valve types in pipelines. If working medium is abrasive, service life of both soft sealing and metal sealing butterfly valves is very short. To solve this problem, Foyo developes Lug type butterfly valves to meet the requirements of high abrasive applications. If working medium is both abrasive and corrosive, we can select suitable body materials for lug ceramic butterfly valves to avoid possible corrosion.

  • Mining slag
  • Coal washing
  • Ash Slurry
  • Suspension
  • Ash
  • Grain
  • Quartz Sand
  • Metallurgical dust
  • Ores
  • Granules

Design Features:
Product type
1. Ceramic butterfly valves are light and easy to install.

2. FOYO triple eccentric design ceramic butterfly valves have low friction and excellent tightness in abrasive mediums. Meanwhile operation torque of lug type butterfly valves is much lower than common metal seated butterfly valves.

3. Ceramics-to-Ceramics seated
The disc sealing ring and seat are both high performance ceramics. High pure 99% Al2O3, Zirconia, Si3N4, and solid Tungsten carbide T.C. are used for Foyo ceramic butterfly valves. Different ceramics materials are suitable for different applications. Foyo’s experienced engineers can help customers to select suitable materials for their specific applications.

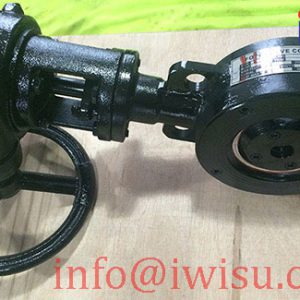

BUTTERFLY VALVESBUTTERFLY VALVES

4. Extended service life of ceramic butterfly valves can minimize maintenance cost for customers
Because of high hardness and excellent corrosion resistance of high performance ceramics, Foyo ceramic butterfly valves have much longer service life than any other common butterfly valves, and save maintenance cost for customers.

Temperature range of Ceramic Butterfly Valves

  • -29℃~180℃ (normal)
  • -29℃~300℃(High Temperature)

Valve tightness

Leakage rate of Foyo Lug type ceramic butterfly valves is Class VI for DN100 (4inch) and smaller sizes, Class V for DN125 (5inch) and larger sizes.
