3 PIECE THREADED CERAMIC BALL VALVES

3 PIECE THREADED CERAMIC BALL VALVES

3 PIECE THREADED CERAMIC BALL VALVES

Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm THREE PIECE THREADED CERAMIC BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của THREE PIECE THREADED CERAMIC BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Specification:

Type: Three Piece Threaded Ceramic Ball Valves
Size: DN15-DN80(1/2”-3”)
Pressure Rating: PN10,PN16,PN25,PN40,CL150,CL300,JIS10K, JIS 20K, 1000WOG
Body Material: ASTM A351 CF8, CF8M. CF3, CF3M, Incoloy 825, Hastelloy C276
Trim Material: ZrO2, 99% Al2O3,99.7%Al2O3,SSIC, STC, Si3N4
End Connection: NPT Threaded, BSP Threaded, G Threaded, R Threaded, Socket Welding, Butt Welding

Typical Applications:

Three piece ceramic ball valves are widely used for many slightly corrosive and abrasive applications, some typical applications are listed as following: Waste Water, Oil, Corrosive and erosive gas, Ash, Medium contain solid particles, Acid, Alkali, Mud Slurry, Some other corrosive and/or abrasive mediums.

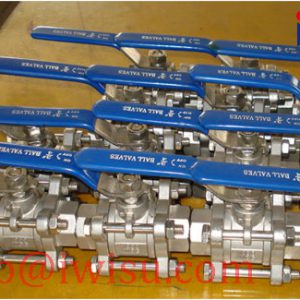

3 PIECE THREADED CERAMIC BALL VALVES - 1

3 PC THREADED CERAMIC BALL VALVES

Design Features:

Design and Manufacture: ASME B16.34

Face-to-Face Dimension: Manufacturer Standard

End: NPT Threaded, BSP Threaded, G Threaded, R Threaded, Socket Welding, Butt Welding are all available on request

Pressure-Temperature Rating: ASME B16.34

Inspection and Testing: API 598

Body Material: ASTM A351 CF8, CF8M. CF3, CF3M, Incoloy 825, Hastelloy C276

Working Temperature: -46℃ to180 ℃

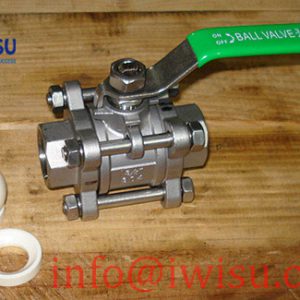

3 PIECE THREADED CERAMIC BALL VALVES - 2

THREE PIECE THREADED CERAMIC BALL VALVES

Three piece ceramic ball valves have same structure like general soft seated and metal seated 3 piece ball valve, except material of ball and seats are replaced by advanced ceramics. Because of the good properties of advanced ceramics, 3 piece ceramic ball valves can replace most common soft seated and metal seated ball valves in corrosive and abrasive applications

1. 3PC body design: 3-PC body With middle body and two adapters, as following detailed drawing illustrated. The valve body has an integral ISO 5211 mounting pad ,so lever, pneumatic actuators and electric actuators can be assembled onto valve directly and easily. Well ground ceramic ball and seats ensure operating torque of 3 piece ceramic ball valves is much lower than general ball valves, smaller actuators can drive it and cost is saved.

Ceramic-to-Ceramic spherical seated: The perfect spherical seal between fine ceramic ball and seats ensure that 3 piece ceramic ball valves have a Class VI shutoff. The anti-scratch design between ball and seat, which prevent the deep sealing surface from being marred and scratched by particles.
