METAL SEATED SEGMENT BALL VALVES
METAL SEATED SEGMENT BALL VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm SEGMENT BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của METAL SEATED BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

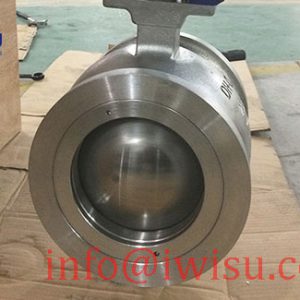

Metal Seated Segment Ball Valves have a special designed v notch ball. The segment V-notch ball provides strong shear force and tight sealing. Depends on different applications.
Specification:
| Type: | Segment Ball Valves |
| Size: | DN25-DN500(1”-20”) |
| Pressure Rating: | PN10,PN16,PN25,PN40, PN63, CL150, CL300, CL600, JIS10K, JIS 20K |
| Body Material: | WCB, CF8, CF8M, CF3M |
| Trim Material: | SS304+Chrome Carbide, SS304+Tungsten Carbide, SS304+Stellite |
| End Connection: |
Flanged type DN25-DN500 (1”-20”) Wafer type DN25-DN250 (1”-10”) |
Typical Applications:

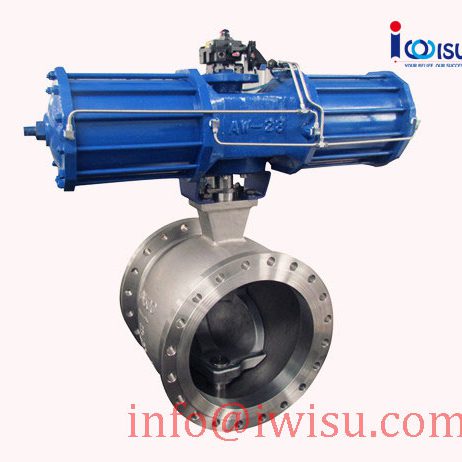

Metal seated segment ball valve is a quarter-turn one-way valve for on-off or control applications. The flow path of ball is designed with a special V notch. With this special V notch, metal seated segment ball valves have precise flow characteristics. Moreover, since the v notch ball and seat is alloy seated, valve will generate a strong shear force between ball and seat when valve is closing. Therefore, FOYO’s metal seated segment ball valves are very suitable for applications where medium contains fiber or hard solid particles. Typical applications and fields are listed as the following: Pulp & Paper,Petrochemical,Printing & Dying,Pharmacy,Beverage & Food,Slurry.
METAL SEATED SEGMENT
Design Features:
1. Integral one piece body:
Because of Integral one piece body design, valve is easy to assemble and maintenance, and medium can flow very smooth with little frictional resistance. Wafer and flange connection ends are both available per customer’s requirement.

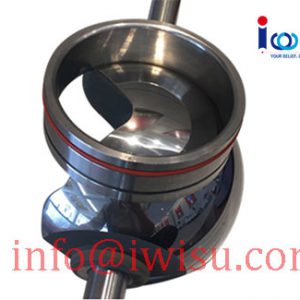

2. Special designed segment v notch ball:
Metal seated segment ball valves have a special designed v notch ball. The segment V-notch ball provides strong shear force and tight sealing. Depending on different applications,sealing face of segment ball can be coated with chromium carbide, tungsten carbide, and nitriding treatment. These hardfaced coating can protect segment ball from damage caused by corrosion, abrasion and high temperature. The sealing face of segment ball is well ground, which lower operating torque of metal seated segment ball valve and ensure tight sealing performance.
SEGMENT BALL VALVES
3. Seat with hard face coated:
The sealing face of seat is coated with stellite, chromium carbide or tungsten carbide. It is also well ground, the leakage class can be up to Class V as per FCI 70-2.
Besides metal seat, RPTFE, Devlon and PEEK seats are also available for FOYO segment ball valves.

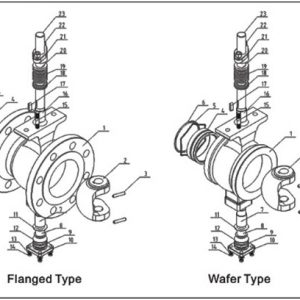

4. Structure: The structure of FOYO metal seated segment ball valve is as the following exploded drawing.
|
No. |
Part Name | Material | ||
| 1 | Body | WCB | CF8 | CF8M |
| 2 | Segment Ball | CF8+Chromium Carbide | CF8+Chromium Carbide | CF8M+Chromium Carbide |
| CF8+Stellite | CF8+Stellite | CF8M+Stellite | ||
| CF8+ENP | CF8+ENP | CF8M+ENP | ||
| CF8+Tungsten Carbide | CF8+Tungsten Carbide | CF8M+Tungsten Carbide | ||
| CF8+Nitriding | CF8+Nitriding | CF8M+Nitriding | ||
| 3 | Pin | SS304 | SS304 | SS316 |
| 4 | Seat | SS304+Stellite | SS304+Stellite | SS316+Stellite |
| 5 | Spring | SS316 | SS316 | SS316 |
| 6 | O-Ring | Viton | Viton | Viton |
| 7 | Bearing | SS304+PTFE | SS304+PTFE | SS316+PTFE |
| 8 | Trunnion | A182 F6a | 17-4PH | 17-4PH |
| 9 | O-Ring | Viton | Viton | Viton |
| 10 | Bottom Cover | WCB | CF8 | CF8M |
| 11 | Washer | PTFE | PTFE | PTFE |
| 12 | Adjusting Gasket | PTFE | PTFE | PTFE |
| 13 | Gasket | SS304 | SS304 | SS316 |
| 14 | Screw | A193 B7 | A193 B8 | A193 B8 |
| 15 | Bolt | A193 B7 | A193 B8 | A193 B8 |
| 16 | Bearing | SS304+PTFE | SS304+PTFE | SS316+PTFE |
| 17 | Key | A182 F6a | A182 F304 | A182 F316 |
| 18 | Bottom Packing Ring | PTFE | PTFE | PTFE |
| 19 | Middle Packing Ring | PTFE | PTFE | PTFE |
| 20 | Top Packing Ring | PTFE | PTFE | PTFE |
| 21 | Packing Gland | WCB | CF8 | CF8 |
| 22 | Nut | A194 2H | A194 8 | A194 8 |
| 23 | Stem | A182 F6a | 17-4PH |
17-4PH |
