Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm SEATED SEGMENT BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của CERAMIC SEATED BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

As a professional ceramic valve manufacturer, FOYO have been using advanced ceramics into many types of valves.

Specification:

Type:

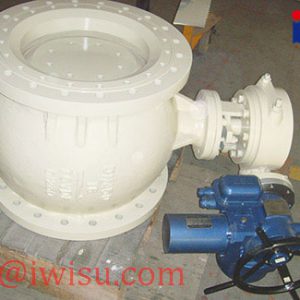

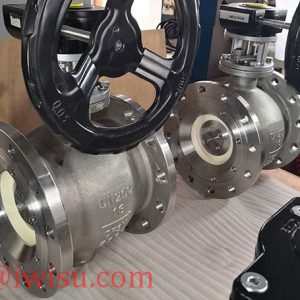

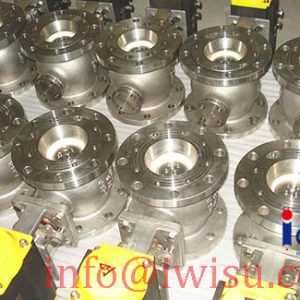

Ceramics Seated Segment Ball Valves
Size: DN50-DN400(2”-16”)
Pressure Rating: PN10,PN16,PN25,PN40, CL150, CL300
Body Material: WCB, CF8, CF8M, CF3M
Trim Material: WCB+ZrO2 Ceramics, WCB+Solid Tungsten Carbide
End Connection:

Flanged type, EN1092-1, DIN 2501, ASME B16.5

CERAMICS SEATED SEGMENT BALL VALVES - 1

SEATED SEGMENT BALL VALVES

Typical Applications:

As a professional ceramic valve manufacturer, FOYO have been using advanced ceramics into many types of valves. Based on the structural advantage of segment ball valves, FOYO developed ceramics seated segment ball valves for bulk material handling systems. Thanks to the combination of the excellent properties of ceramics and the reliable properties of segment ball valves, FOYO ceramics seated segment ball valves have become a well proven product in bulk material handling systems.

CERAMICS SEATED SEGMENT BALL VALVES - 5

SEATED SEGMENT BALL VALVES

Design Features:

1. Integral one piece body:

As the same to metal seated segment ball valve, FOYO ceramics seated segment ball valves have Integral one piece body design, valve is easy to assemble and maintenance. Since FOYO ceramics seated segment ball valves have simple structure one piece and cavity free body, they can minimize resistance of material and reduce the possibility of material build up in valve body. TheT medium flow is very smooth with little frictional resistance, then abrasion is reduced and service life is extended.

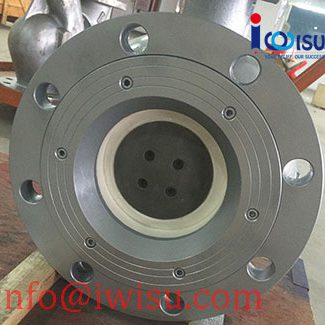

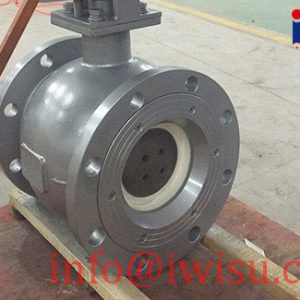

2. Ceramics-to-Ceramics Seated:

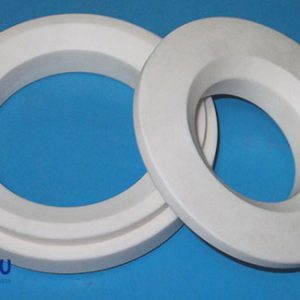

The sealing face of segment ball is replaced with a solid ceramic ring, and seat is also ceramic material. The hardness of ceramics is upto HRA 88, hard enough to avoid severe abrasion. Perfect spherical sealing of ceramics seated segment ball valves protects segment ball and seat sealing face from wear and abrasion.

CERAMICS SEATED SEGMENT BALL VALVES - 4

SEATED SEGMENT BALL VALVES

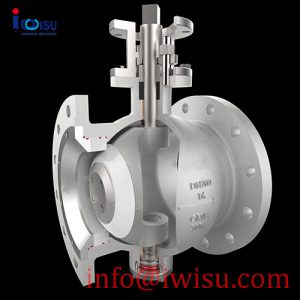

3. Eccentric segment ball:

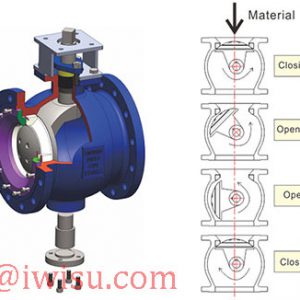

The segment ball of ceramics seated segment ball valve is designed to be eccentric.When valve is opening,sealing ring will be separated from seat sealing face to reduce friction. On the other side, when valve is closing, a shear force will be generated between segment ball and seat to cut off material from sealing face.

CERAMICS SEATED SEGMENT BALL VALVES - 7

SEATED SEGMENT BALL VALVES

4. Based on improved design:

FOYO ceramics seated segment ball valve is able to carry heavy gravity loads of bulk material, and can cut through moving or static columns of materials like fly ash, slag, etc.

The structure of FOYO ceramics seated segment ball valve is as the following exploded drawing.

No.

Part Name Material
1 Body WCB CF8 CF8M
2 Segment Ball WCB CF8 CF8M
3 Sealing Ring Ceramics Ceramics Ceramics
4 Cover WCB CF8 CF8M
5 Screw A193 B7 A193 B8 A193 B8
6 Screw A193 B7 A193 B8 A193 B8
7 O-Ring Viton Viton Viton
8 Seat Holder A105 F304 F316
9 Seat Ceramics Ceramics Ceramics
10 Stem 17-4PH 17-4PH 17-4PH
11 Anti-Explosion Ring SS304 SS304 SS316
12 Packing PTFE/Graphite PTFE/Graphite PTFE/Graphite
13 Gland SS304 SS304 SS304
14 Bolt/Nut A193 B7/A194 2H A193 B8/A194 8 A193 B8/A194 8
15 Gland Flange SS304 SS304 SS304
16 Bolt A193 B7 A193 B8 A193 B8
17 Yoke CF8 CF8 CF8
18 Trunnion 17-4PH 17-4PH 17-4PH
19 Bottom Cover WCB SS304 SS304
20 Screw A193 B7 A193 B8

A193 B8
