PRESSURE SEAL BONNET CERAMIC GLOBE VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm PRESSURE SEAL BONNET GLOBE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của PRESSURE SEAL BONNET GLOBE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.
Specification
Type | Pressure Seal Bonnet Ceramic Globe Valves |
Size | DN50-DN300(1”-12”) |
Pressure Rating | PN10,PN16,PN25,PN40, PN63, PN100, PN160, CL150, CL300, CL600, CL900 |
Body Material | WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium |
Trim Material | ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4 |
End Connection | Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5 |
Typical Applications
For metal seated globe valves,metal seat and disc sealing face is easily to get damaged if medium is corrosive or abrasive. Pressure Seal Ceramic globe valves are developed by Foyo to solve these corrosion and abrasion problems in high pressure applications. Pressure seal bonnet globe valves are widely used in many severe high pressure applications, such as sea water, corrosive slurry, ect.
Design Features:
Product type
Pressure seal bonnet globe valves have many body structures for customers as below:

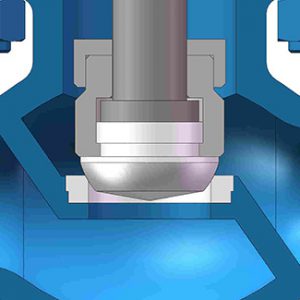

Straight pattern, angle pattern, Y pattern, forged body. These structures are all available for FOYO pressure seal ceramic globe valves. Rising Stem with precision threads are suitable for horizontal installation. Variable ceramic trim, including ZrO2 ceramics, Al2O3 ceramics, silicon nitride, tungsten carbide ,which make sure that pressure seal ceramic globe valves have excellent abrasion resistance and corrosion resistance. Spherical seat face and conical ceramic disc ensure that pressure seal ceramic globe valves are zero leakage.

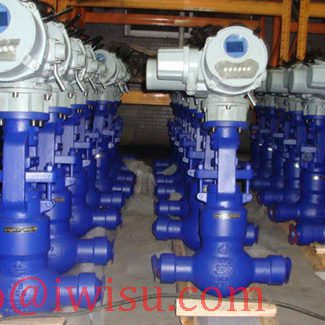

PRESSURE SEAL BONNET GLOBE VALVES
Temperature range
Depends on the material used for pressure seal bonnet ceramic globe valves, normal working temperature is -29~250 degree.
Valve tightness
The disc and seat sealing face are well polished so that all pressure seal ceramic globe valves have tight shut off properties. The leakage class is up to Class VI.
Design Standards
Valve body design: BS 1868
Face-to-Face Dimension: ASME B16.10
Buttweld End: ASME B16.25
Flange Ends: ASME B16.5, EN 1092-1
