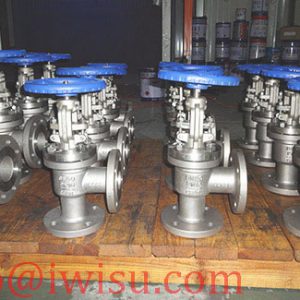

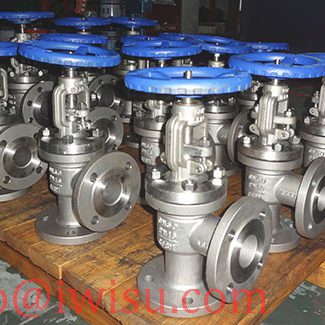

ANGLE PATTERN CERAMIC GLOBE VALVES
ANGLE PATTERN CERAMIC GLOBE VALVES
Tổng quan:
Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE
Trong đó sản phẩm PRESSURE SEAL BONNET GLOBE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.
Chất lượng của PRESSURE SEAL BONNET GLOBE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.
Specification
| Type | Angle Pattern Globe Valves |
| Size | DN50-DN300(1”-12”) |
| Pressure Rating | PN10,PN16,PN25,PN40, PN63, PN100, PN160, CL150, CL300, CL600, CL900 |
| Body Material | WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium |
| Trim Material | ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4 |
| End Connection | Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5 |

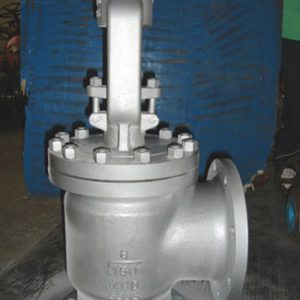

CERAMIC GLOBE VALVES
Typical Applications
For metal seated globe valves, metal seat and disc sealing face is easily to get damaged if medium is corrosive or abrasive. Angle pattern globe valves are developed by Foyo to solve these corrosion and abrasion problems in high pressure applications. Ceramic globe valves are widely used in many severe high pressure applications, such as sea water, corrosive slurry, ect.
Design Features:
Product type
Rising Stem with precision threads and suitable for horizontal installation. Variable ceramic trim, including ZrO2 ceramics, Al2O3 ceramics, silicon nitride, tungsten carbide, which make sure that angle pattern globe valves have excellent abrasion resistance and corrosion resistance. Spherical seat face and conical ceramic disc ensure that angle pattern ceramic globe valves are zero leakage.
Temperature range
Depends on the material used for ceramic globe valves, the normal working temperature is -29~250 degree.
Valve tightness
The disc and seat sealing face are well polished so that all ceramic globe valves have tight shut off properties. The leakage class is up to Class VI.
Design Standards
Valve body design: BS 1868
Face-to-Face Dimension: ASME B16.10
Buttweld End: ASME B16.25
Flange Ends: ASME B16.5, EN 1092-1
