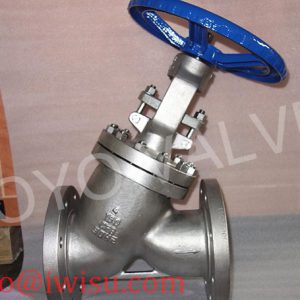

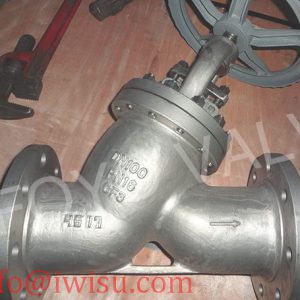

Y PATTERN CERAMIC GLOBE VALVES

Y PATTERN CERAMIC GLOBE VALVES

Y PATTERN CERAMIC GLOBE VALVES

Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm Y PATTERN GLOBE VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của Y PATTERN GLOBE VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Specification

Type Y Pattern Globe Valves
Size DN50-DN300(1”-12”)
Pressure Rating PN10,PN16,PN25,PN40, PN63, PN100, PN160, CL150, CL300, CL600, CL900
Body Material WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium
Trim Material ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4
End Connection Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5



Typical Applications

For metal seated globe valves, metal seat and disc sealing face is easily to get damaged if medium is corrosive or abrasive.Y pattern globe valves are developed by Foyo to solve these corrosion and abrasion problems in high pressure applications. Ceramic globe valves are widely used in many severe high pressure applications, such as sea water, corrosive slurry, ect.

Design Features:

Product type

FOYO Y pattern globe valves have rising Stem with precision threads and suitable for horizontal installation. Variable ceramic trim, including ZrO2 ceramics, Al2O3 ceramics, silicon nitride, tungsten carbide, which make sure that Y pattern globe valves have excellent abrasion resistance and corrosion resistance. Spherical seat face and conical ceramic disc ensure that ceramic globe valves are zero leakage.

Temperature range

Depends on the material used for ceramic globe valves,normal working temperature is -29~250 degree.

Valve tightness

The disc and seat sealing face are well polished so that all Y pattern type globe valves have tight shut off properties. The leakage class is up to Class VI.

Design Standards

Valve body design: BS 1868

Face-to-Face Dimension: ASME B16.10

Buttweld End: ASME B16.25

Flange Ends: ASME B16.5, EN 1092-1

Website liên kết: thegioivalve, thegioimatbich, iwisu , thietbinhapkhau
