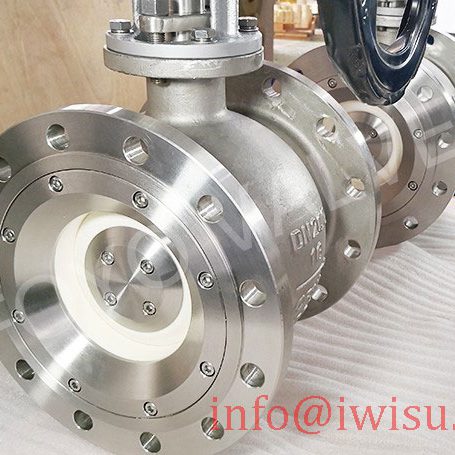

SS BODY CERAMIC SEGMENT BALL VALVES

SS BODY CERAMIC SEGMENT BALL VALVES

SS BODY CERAMIC SEGMENT BALL VALVES

Tổng quan:

Công ty IWISU là một trong những công ty hàng đầu ở Việt Nam về phân phối Van với các thương hiệu nổi tiếng trên thế giới như: ANIX, JC VALVE, FOYO VALVE, SAMWOO, BONNEY FORGE, SWISS FLUID, JDV CONTROL VALVE, MARIANI, KITZ, EBRO VALVE

Trong đó sản phẩm STAINLESS STEEL SEGMENT BALL VALVE được công ty nhập khẩu và phân phối tại Việt Nam.

Chất lượng của STAINLESS STEEL SEGMENT BALL VALVE không chỉ đáp ứng nhu cầu của khách hàng mà còn mang lại sự tin tưởng, uy tín về sản phẩm do công ty phân phối.

Stainless Steel Ceramic segment ball valves have lower flow resistance, small volume, light weight which is easy to transport and install. Foyo ceramic seated segment ball valves are widely used for all kinds of abrasive slurry and powder transportation.

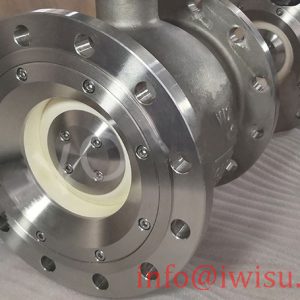

SS BODY CERAMIC SEGMENT BALL VALVES - 2

STAINLESS STEEL SEGMENT BALL VALVES

The trim of common metal seated segment ball valve is easily abraded by gas-solid mixture and slurry containing high-hardness solids, which will cause leakage easily. Combining structure advantage of segment ball valve with excellent performance of structure ceramics, FOYO has developed CSBV series Stainless Steel Ceramic segment ball valves.

CSBV series ceramic segment ball valve is designed as flange ends. Body material could be carbon steel, stainless steel according to working conditions or per customers’ requirements. Hemispherical sealing ring and seat are structure ceramics, so that sealing face will not be eroded, abraded and corroded by medium and make sure of excellent sealing performance during long-time usage.

Performance characteristics

FOYO CSBV series ceramic segment ball valve is eccentric design. When valve is opening, Hemispherical sealing ring and seat departs, which will reduce valve torque effectively. When valve is closing, hemispherical sealing ring and seat will make a shear effect to cut off solid and fiber in the medium to avoid foreign things stuck valve or cause leakage.

Hemispherical sealing ring and seat use high performance structure ceramics. ZrO2,99%Al2O3, solid tungsten carbide, Si3N4 are optional for different working conditions.

Hemispherical sealing ring and seat sealing is sphere sealing. It makes use of advanced technology and machining equipment. After precision grinding, leakage class could reach ANSI/FCI 70-2 V.

Actuated method includes bare stem, gear, pneumatic actuator, electric actuator and so on. Yoke Interface dimensions are designed according to ISO 5211.

Applied field

ZrO2,99%Al2O3 and Si3N4 has excellent chemical stability, which can make sure that sealing face of CSBV series ceramic segment ball valve will not be destroyed after long-time applying in all kinds of corrosive and abrasive medium.

Ceramic segment ball valve has huge body with one-way seal so that valve will not be stuck or leaked because of blocked medium in the valve. Eccentric structure makes sure that there is shear cut-off of solid and fibers when valve is closing.

CSBV series ceramic segment ball valve has good performance for steel mill, mining, pulp and paper and environmental protection and so on.
